  1. Home
  2. /Bearings
  3. /SKF 7305 Angular Contact Ball Bearing
SKF

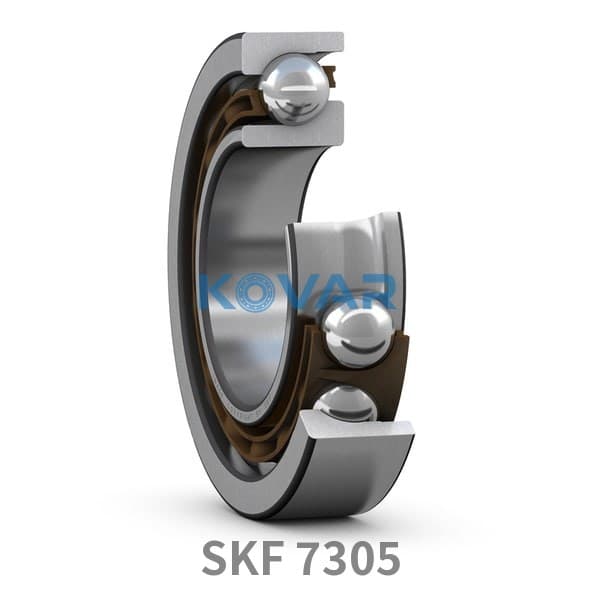

SKF 7305 SKF 7305 Angular Contact Ball Bearing
  • SKF 7305 SKF 7305 Angular Contact Ball Bearing

SKF

SKF 7305 Angular Contact Ball Bearing 25 × 62 × 17 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLZBQS2HBB
Category
Angular Contact Ball Bearing
Bore
25 mm
Outer Ø
62 mm
Width
17 mm

Overview

The SKF 7305 is a plain angular contact ball bearing with no suffix, 25 × 62 × 17 mm (bore × OD × width).

Kovar lists 8 SKF variants in the 25×62×17 mm size; the closest to the 7305 are 7305ACCBM, 7305BE-2RZP (40° contact angle, optimized internal design, Non-contact seals on both sides, Glass fibre reinforced PA66 cage), 7305BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance). Limiting speed is 14,000 rpm for the 7305 versus 23,000 rpm for the 7305ACCBM.

The same specification comes one size down as 7304 (20 mm bore) and one size up as 7306 (30 mm bore). Parts from other brands with the same dimensions as the 7305 include FAG 7305 -B-MP, IBC 7305.BE, KOYO 7305, NACHI 7305CP5; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m0.223 kgWeight
nϑr15000Reference speed
nG14000Limiting speed
α40 °Contact Angle (α)
C24.2 kNBasic Dynamic Load Rating (C)
C014 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d25Bore diameter
D62Outside diameter
B17Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

RFQ

Same size as SKF 7305, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
