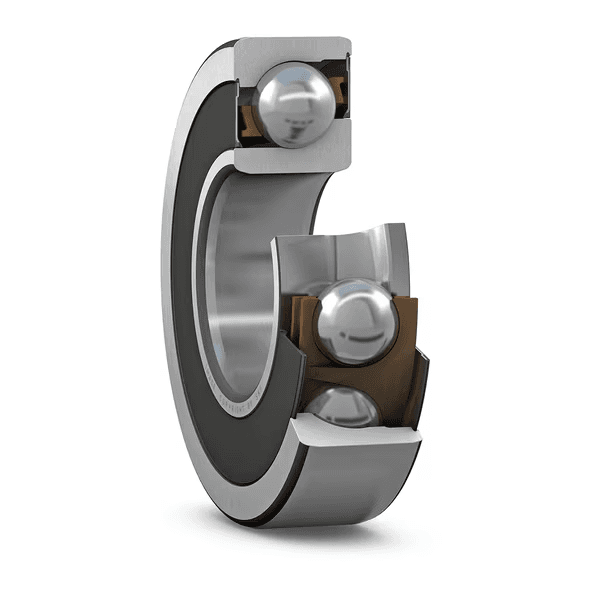

SKF 7306 BE-2RZP Angular Contact Ball Bearing 30 × 72 × 19 mm

Single row angular contact ball bearing with 40° contact angle and non-contact seals on both sides

Angular Contact Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Angular Contact Ball Bearing
Dimensions: 30x72x19mm

Overview

Single row angular contact ball bearing with 40° contact angle and non-contact seals on both sides

These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

Key features

40° contact angle
Integral sealing prolongs bearing service life
Glass-fibre reinforced PA66 cage
Accommodate relatively high radial loads and large unilateral axial loads

Typical applications

Machine tool spindles and support shafts
Pumps and compressors
High-speed motors
Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Symbol	Value	Description
C	32.5 kN	Basic dynamic load rating
C0	19.3 kN	Basic static load rating
reference_speed_rpm	13 000 r/min	Reference speed
limiting_speed_rpm	9 500 r/min	Limiting speed

Symbol	Value	Description
d	30 mm	Bore diameter
D	72 mm	Outside diameter
B	19 mm	Width
α	40 °	Contact angle

Symbol	Value	Description
da	max. 46 mm	da
Da	max. 65 mm	Da
Db	max. 67.8 mm	Db
ra	max. 1 mm	ra
rb	max. 0.6 mm	rb

Contact angle 40°
Integrated sealing extends bearing life
Glass-fibre reinforced PA66 cage
Accommodates relatively high radial loads and large unidirectional axial loads

Code	Description
접촉 유형	Normal contact (four-point contact)
열 개수	1
로케이팅 기능, 베어링 외륜	None
링 유형	One-piece inner and outer ring
케이지	Non-metallic
일치된 배열	No
유니버설 매칭 베어링	No
축방향 내부틈새	Not applicable
공차 클래스	Normal
소재, 베어링	Bearing steel
코팅	None
씰링	Seal on both sides
씰링 유형	Non-contact
윤활유	Grease
재윤활 기능	None
제품 순 중량	0.34 kg
eClass 코드	23-05-08-03
UNSPSC 코드	31171531
