SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

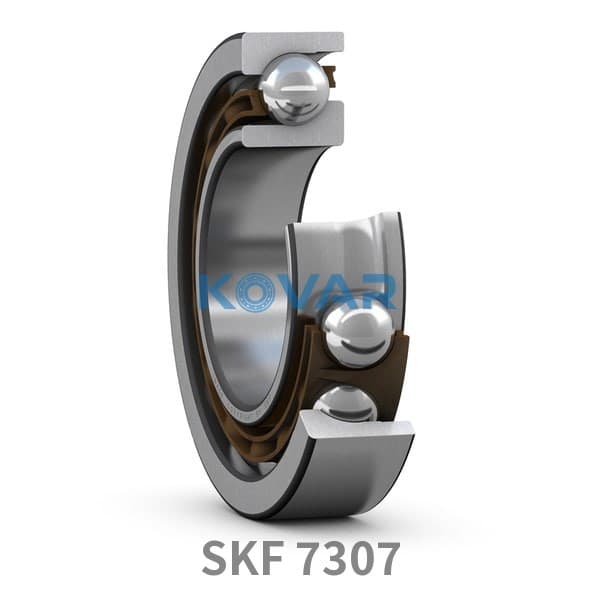

The SKF 7307 is a plain angular contact ball bearing with no suffix, 35 × 80 × 21 mm (bore × OD × width).
Kovar lists 10 SKF variants in the 35×80×21 mm size; the closest to the 7307 are 7307ACCBM, 7307BE-2RZP (40° contact angle, optimized internal design, Non-contact seals on both sides, Glass fibre reinforced PA66 cage), 7307BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance). Limiting speed is 10,000 rpm for the 7307 versus 17,000 rpm for the 7307ACCBM.
The same specification comes one size down as 7306 (30 mm bore) and one size up as 7308 (40 mm bore). Parts from other brands with the same dimensions as the 7307 include FAG 7307 -B-MP, IBC 7307.BE, KOYO 7307, NSK 7307; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.444 kg | Weight |
| nϑr | 11000 | Reference speed |
| nG | 10000 | Limiting speed |
| α | 40 ° | Contact Angle (α) |
| C | 39 kN | Basic Dynamic Load Rating (C) |
| C0 | 24.5 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 35 | Bore diameter |
| D | 80 | Outside diameter |
| B | 21 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
