SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

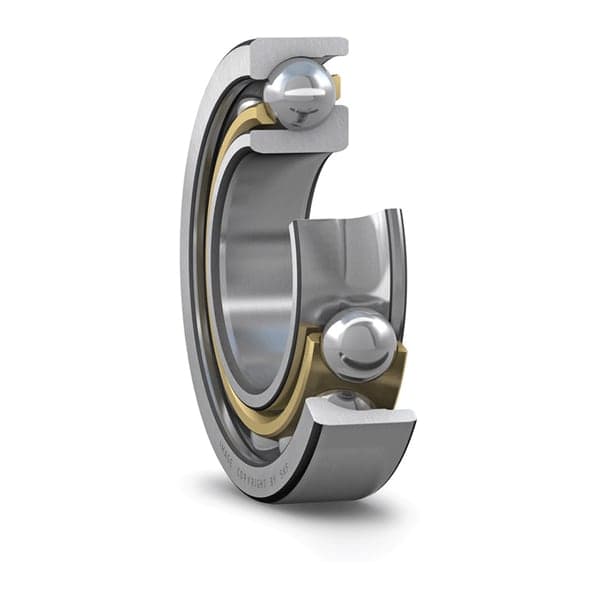

The SKF 7310 is a plain angular contact ball bearing with no suffix, 50 × 110 × 27 mm (bore × OD × width).
Kovar lists 14 SKF variants in the 50×110×27 mm size; the closest to the 7310 are 7310ACCBM, 7310BE-2RZP (40° contact angle, optimized internal design, Non-contact seals on both sides, Glass fibre reinforced PA66 cage), 7310BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance). Limiting speed is 10,000 rpm for the 7310 versus 12,000 rpm for the 7310ACCBM.
The same specification comes one size down as 7309 (45 mm bore) and one size up as 7311 (55 mm bore). Parts from other brands with the same dimensions as the 7310 include FAG 7310 -B-MP, IBC 7310.BE, KOYO 7310, NSK 7310; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 1.16 | Weight |
| nϑr | 8000 | Reference speed |
| nG | 10000 | Limiting speed |
| α | 40 ° | Contact Angle (α) |
| C | 75 kN | Basic Dynamic Load Rating (C) |
| C0 | 51 kN | Basic Static Load Rating (C0) |
| SKF Explorer | Performance Class |
| Symbol | Value | Description |
|---|---|---|
| d | 50 | Bore diameter |
| D | 110 | Outside diameter |
| B | 27 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
