  1. Home
  2. /Bearings
  3. /SKF 7311 Angular Contact Ball Bearing
SKF

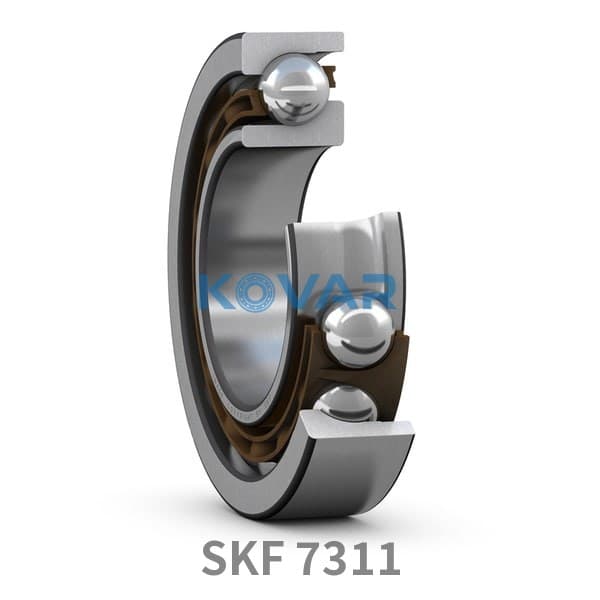

SKF 7311 SKF 7311 Angular Contact Ball Bearing
  • SKF 7311 SKF 7311 Angular Contact Ball Bearing

SKF

SKF 7311 Angular Contact Ball Bearing 55 × 120 × 29 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLCKW5YMQQ
Category
Angular Contact Ball Bearing
Bore
55 mm
Outer Ø
120 mm
Width
29 mm

Overview

SKF 7311: a plain angular contact ball bearing with no suffix measuring 55 × 120 × 29 mm (bore × OD × width).

Kovar lists 14 SKF variants in the 55×120×29 mm size; the closest to the 7311 are 7311ACCBM, 7311BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance), 7311BECBP (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance, Glass fibre reinforced PA66 cage). Limiting speed is 6,700 rpm for the 7311 versus 11,000 rpm for the 7311ACCBM.

The same specification comes one size down as 7310 (50 mm bore) and one size up as 7312 (60 mm bore). Looking for the 7311 size from another brand? Options include FAG 7311 -B-MP, IBC 7311.BE, KOYO 7311, NSK 7311 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m1.33Weight
nϑr7000Reference speed
nG6700Limiting speed
α40 °Contact Angle (α)
C79.3 kNBasic Dynamic Load Rating (C)
C055 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d55Bore diameter
D120Outside diameter
B29Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

RFQ

Same size as SKF 7311, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
