  1. Home
  2. /Bearings
  3. /SKF 7312 Angular Contact Ball Bearing
SKF

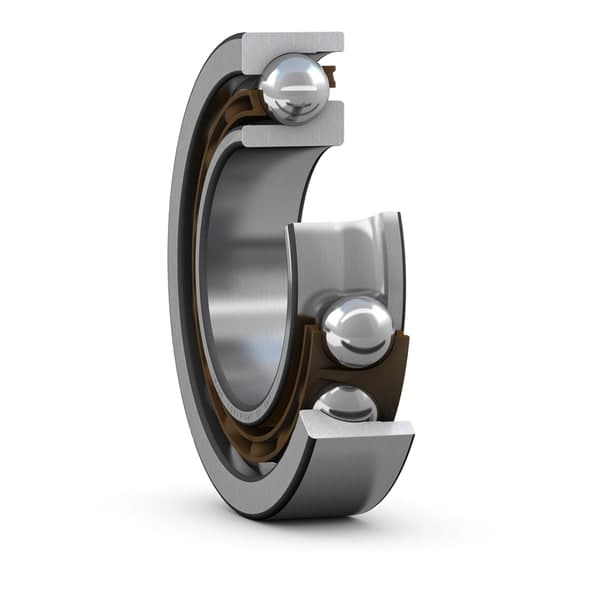

SKF 7312 SKF 7312 Angular Contact Ball Bearing
  • SKF 7312 SKF 7312 Angular Contact Ball Bearing

SKF

SKF 7312 Angular Contact Ball Bearing 60 × 130 × 31 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLW02XQ9NS
Category
Angular Contact Ball Bearing
Bore
60 mm
Outer Ø
130 mm
Width
31 mm

Overview

The SKF 7312 is a plain angular contact ball bearing with no suffix, 60 × 130 × 31 mm (bore × OD × width).

Kovar lists 12 SKF variants in the 60×130×31 mm size; the closest to the 7312 are 7312ACCBM, 7312BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance), 7312BECBP (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance, Glass fibre reinforced PA66 cage). Limiting speed is 6,000 rpm for the 7312 versus 10,000 rpm for the 7312ACCBM.

The same specification comes one size down as 7311 (55 mm bore) and one size up as 7313 (65 mm bore). Parts from other brands with the same dimensions as the 7312 include FAG 7312 -B-MP, IBC 7312.BE, KOYO 7312, NSK 7312; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m1.71Weight
nϑr6700Reference speed
nG6000Limiting speed
α40 °Contact Angle (α)
C95.6 kNBasic Dynamic Load Rating (C)
C069.5 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d60Bore diameter
D130Outside diameter
B31Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

RFQ

Same size as SKF 7312, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
