  1. Home
  2. /Bearings
  3. /SKF 7315 Angular Contact Ball Bearing
SKF

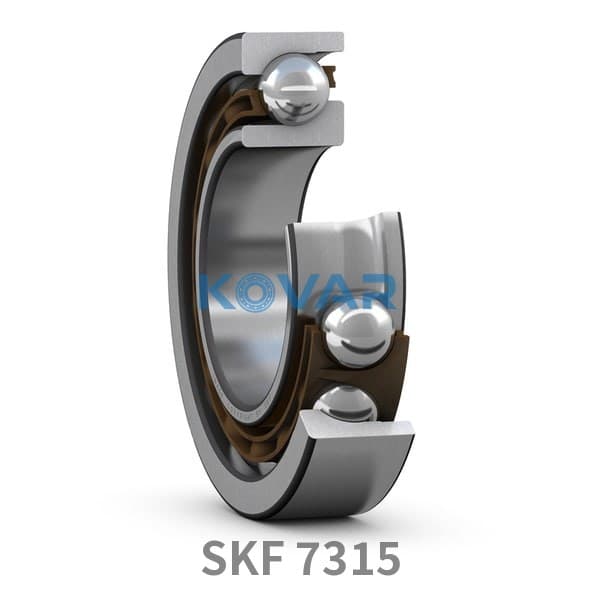

SKF 7315 SKF 7315 Angular Contact Ball Bearing
  • SKF 7315 SKF 7315 Angular Contact Ball Bearing

SKF

SKF 7315 Angular Contact Ball Bearing 75 × 160 × 37 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

NWRGN6J4Z1
Category
Angular Contact Ball Bearing
Bore
75 mm
Outer Ø
160 mm
Width
37 mm

Overview

SKF 7315: a plain angular contact ball bearing with no suffix measuring 75 × 160 × 37 mm (bore × OD × width).

Kovar lists 9 SKF variants in the 75×160×37 mm size; the closest to the 7315 are 7315BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance), 7315BECBP (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance, Glass fibre reinforced PA66 cage), 7315BEGAM (40° contact angle, optimized internal design, Single bearing for universal matching, light preload). Limiting speed is 5,000 rpm for the 7315 versus 7,000 rpm for the 7315BECBM.

The same specification comes one size down as 7314 (70 mm bore) and one size up as 7316 (80 mm bore). Looking for the 7315 size from another brand? Options include FAG 7315 -B-MP, IBC 7315.BE, KOYO 7315, NSK 7315 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m3.06Weight
nϑr5300Reference speed
nG5000Limiting speed
α40 °Contact Angle (α)
C125 kNBasic Dynamic Load Rating (C)
C098 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d75Bore diameter
D160Outside diameter
B37Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

RFQ

Same size as SKF 7315, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 7315-B-MP Angular Contact Ball Bearing

    FAG

    7315-B-MP

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • IBC
    IBC IBC 7315.BE Angular Contact Ball Bearing

    IBC

    7315.BE

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7315 Angular Contact Ball Bearing

    KOYO

    7315

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 7315 Angular Contact Ball Bearing

    NSK

    7315

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7315 Angular Contact Ball Bearing

    NTN

    7315

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 7315BECBJ Angular Contact Ball Bearing

    SKF

    7315BECBJ

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 7315-B-MP-UA Angular Contact Ball Bearing

    FAG

    7315-B-MP-UA

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7315BG Angular Contact Ball Bearing

    KOYO

    7315BG

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
