SKF
Single row angular contact ball bearing
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

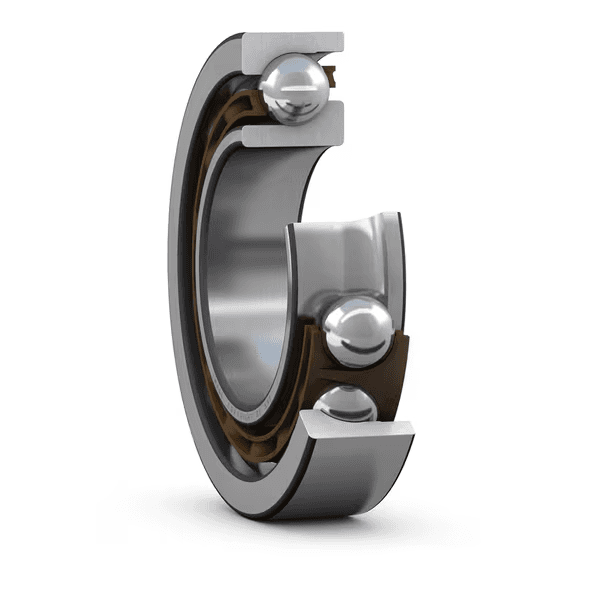

The SKF 7316BEGAP is an angular contact ball bearing with 40° contact angle · optimized internal design (BE) and single bearing for universal matching · light preload (class A, GA), 80 × 170 × 39 mm (bore × OD × width).
Kovar lists 9 SKF variants in the 80×170×39 mm size; the closest to the 7316BEGAP are 7316BEGAM (40° contact angle, optimized internal design, Single bearing for universal matching, light preload), 7316BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance), 7316BECBP (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance, Glass fibre reinforced PA66 cage). Limiting speed is 5,000 rpm for the 7316BEGAP versus 6,700 rpm for the 7316BEGAM.
The same specification comes one size down as 7315BEGAP (75 mm bore) and one size up as 7317BEGAP (85 mm bore). Parts from other brands with the same dimensions as the 7316BEGAP include FAG 7316 -B-MP, IBC 7316.BE, KOYO 7316, NSK 7316; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| C | 143 kN | Basic dynamic load rating |
| C0 | 118 kN | Basic static load rating |
| nϑr | 5 000 r/min | Reference speed |
| nG | 5 000 r/min | Limiting speed |
| SKF Explorer | SKF performance class | |
| ≈m | 3.64 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 80 mm | Bore diameter |
| D | 170 mm | Outside diameter |
| B | 39 mm | Width |
| α | 40 ° | Contact angle |
| Symbol | Value | Description |
|---|---|---|
| da | min. 92 mm | da |
| Da | max. 158 mm | Da |
| Db | max. 163 mm | Db |
| ra | max. 2 mm | ra |
| rb | max. 1 mm | rb |
| Code | Description |
|---|---|
| Contact type | Normal contact (four-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer ring |
| Cage | Non-metallic |
| Matched arrangement | No |
| Universally matchable bearing | Yes |
| Axial internal clearance | Not applicable |
| Matched condition (axial clearance / preload) | Light preload |
| Tolerance class | 클래스 6 (P6) |
| Material, bearing | Bearing steel |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Relubrication feature | None |
| Net weight | 3.64 kg |
| eClass code | 23-05-08-03 |
| UNSPSC code | 31171531 |
Single row angular contact ball bearing
These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
