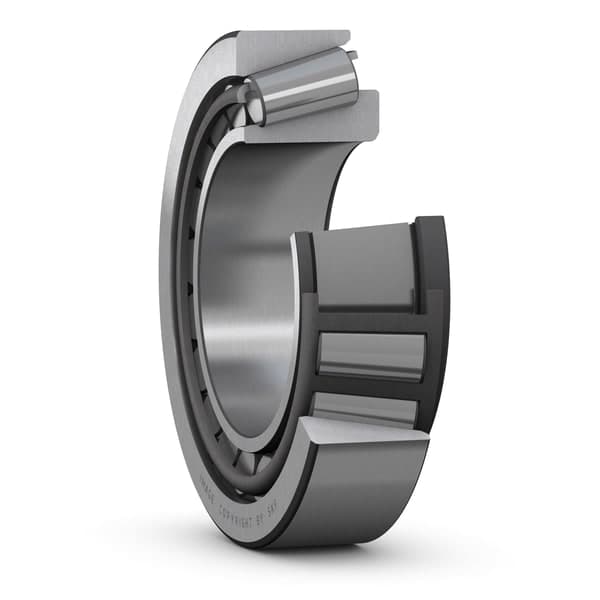

SKF BT1-0160 Tapered Roller Bearing 95 × 135 × 20 mm

Tapered Roller Bearing

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Tapered Roller Bearing
Dimensions: 95x135x20mm

Overview

Tapered roller bearing

Tapered roller bearings are designed so the conical rollers and the inner/outer raceways meet at a common apex, efficiently carrying large radial loads together with axial load in one direction. Typically mounted in opposed pairs to handle loads in both directions and provide rigidity, they are standard in automotive wheel hubs, transmissions and construction/mining equipment for heavy-duty service.

Key features

Large radial plus single-direction axial load
Opposed pairs give bidirectional load and rigidity
Separable for easy mounting and adjustment
Standard in heavy-duty drivetrains

Typical applications

Automotive and industrial wheel hubs
Gearboxes and differentials
Construction and agricultural axles
Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

Symbol	Value	Description
C	89.4 kN	Basic dynamic load rating
C0	125 kN	Basic static load rating
reference_speed_rpm	3 600 r/min	Reference speed
limiting_speed_rpm	4 500 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	95 mm	Bore diameter
D	135 mm	Outside diameter
T	20 mm	Total width
B	20 mm	Inner ring width
C	14 mm	Outer ring width
α	21.3 °	Contact angle

Code	Description
베어링 부품	Complete bearing
열 개수	1
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Sheet metal
접촉각 배열(복열 베어링)	Not applicable
일치된 배열	No
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
유닛 시스템	Metric
제품 순 중량	0.841 kg
eClass 코드	23-05-09-10
UNSPSC 코드	31171516

datasheet pdf download
