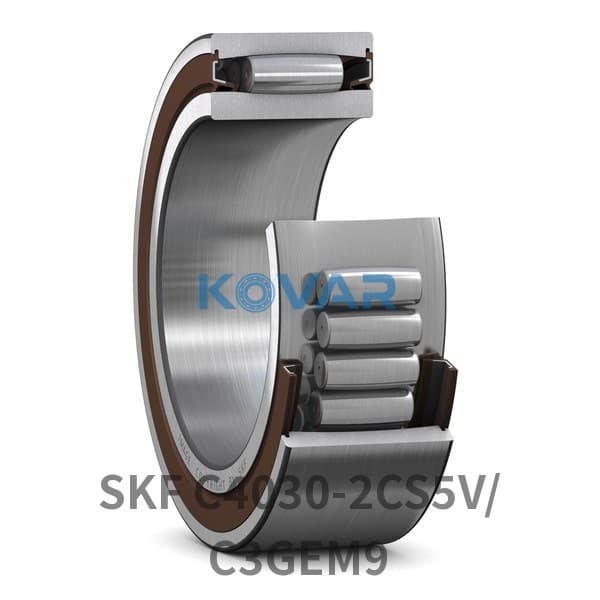

SKF C4030-2CS5V/C3GEM9 Barrel Roller Bearing 150 × 225 × 75 mm

Toroidal Roller Bearings (CARB)

Barrel Roller Bearing

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Barrel Roller Bearing
Dimensions: 150x225x75mm

Overview

SKF C4030-2CS5V/C3GEM9 Barrel Roller Bearing uses a single row of barrel-shaped rollers and a spherical raceway to tolerate misalignment. With self-aligning capability and high radial load capacity, it suits gearboxes, conveyors, and industrial shaft supports under medium to heavy loads.

Barrel-shaped rollers run between the inner ring raceway and spherical outer ring raceway. The single-row structure can be more compact in width than a spherical roller bearing, depending on the application.

Key features

Misalignment compensation
High radial load capacity
Relatively compact single-row design
Suitable for medium-duty rotating positions

Typical applications

Gearbox auxiliary shafts
Conveyors and pulleys
Industrial fans
General heavy-duty shafts

Selection guidance

Review misalignment, radial load, presence of axial load, mounting width, lubrication, and speed range.

Symbol	Value	Description
C	585 kN	Basic dynamic load rating
C0	965 kN	Basic static load rating
limiting_speed_rpm	63 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	150 mm	Bore diameter
D	225 mm	Outside diameter
B	75 mm	Width

Symbol	Value	Description
da	max. 174 mm	da
Da	max. 214 mm	Da
ra	max. 2 mm	ra

Code	Description
열 개수	1
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	None
경방향 내부틈새	C3
공차 클래스	Normal
씰링	Seal on both sides
씰링 유형	Contact type
윤활유	Grease
재윤활 기능	None
재제조가능여부	Yes
제품 순 중량	10 kg
eClass 코드	23-05-09-13
UNSPSC 코드	31171505

datasheet pdf download
