  1. Home
  2. /Bearings
  3. /SKF NKX 30 Z
SKF SKF NKX 30 Z
  • SKF SKF NKX 30 Z

SKF

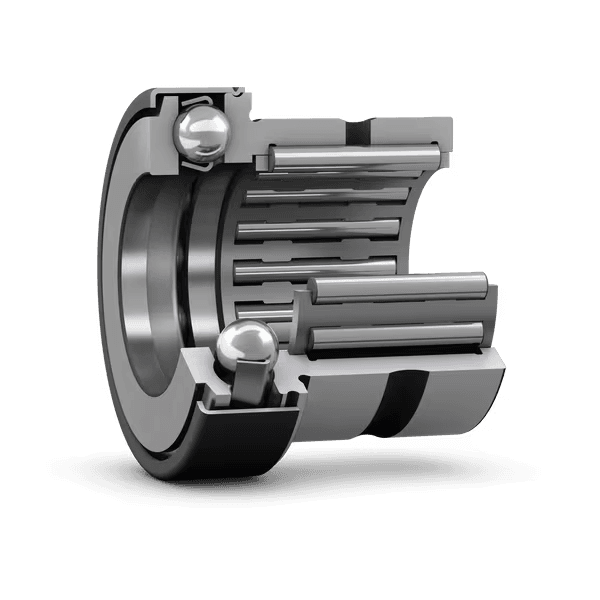

SKF NKX 30 Z Needle Roller Bearing 30 × 42 × 30 mm

Combined needle roller / thrust ball bearing with a cover

Needle Roller Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

CXEV05MHSQ
Category
Needle Roller Bearing
Dimensions
30x42x30mm

Overview

Combined needle roller / thrust ball bearing with a cover

These bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part is capped with a cover that forms a gap-type seal to retain the grease in the bearings.

Key features

  • ·Accommodate radial and axial loads in one direction
  • ·High load carrying capacity
  • ·Relatively high-speed capability
  • ·Low cross section
  • ·Non-separable design

Typical applications

  • ·Automotive transmissions
  • ·Industrial gearboxes
  • ·Compressors and pumps
  • ·Links, pivots, and rocker arms

Selection guidance

Check mounting envelope, inner ring requirement, shaft surface hardness, lubrication, load, and speed range.

SymbolValueDescription
reference_speed_rpm6 000 r/minReference speed
limiting_speed_rpm5 000 r/minLimiting speed
SymbolValueDescription
d30 mmBore diameter
D42 mmOutside diameter
B30 mmWidth
SymbolValueDescription
damin. 42.7 mmda
ramax. 0.6 mmra
rbmax. 0.3 mmrb
di25 mmdi
F30 mmF
Bi20 mmBi
  • Accommodates radial and axial loads in one direction
  • High load capacity
  • Relatively high-speed capability
  • Low cross-section
  • Non-separable design
CodeDescription
구름 베어링 유형Needle roller/thrust ball bearing
베어링 부품Radial component without inner ring
스러스트 부품With cage
경방향 부품With cage
구름 요소(스러스트 부품)Ball
축방향 하중 역량Single row
공차 클래스Other
소재, 베어링Bearing steel
코팅None
특수 기능Thrust component with stamped steel cover without lubrication hole
윤활제(스러스트 부품)Grease
제품 순 중량0.143 kg
eClass 코드23-05-09-03
UNSPSC 코드31171512
📄datasheet pdf download

Also searched as

The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:

  • NKX30Z
  • NKX30 Z
  • NKX 30Z
  • NKX30
  • SKFNKX30Z
  • SKF NKX 30 Z
  • SKFNKX 30 Z
  • SKFNKX30 Z
  • SKF NKX30Z
  • SKF NKX 30Z
  • SKFNKX30
  • NKX
