| Symbol | Value | Description |
|---|---|---|
| reference_speed_rpm | 4 300 r/min | Reference speed |
| limiting_speed_rpm | 6 300 r/min | Limiting speed |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

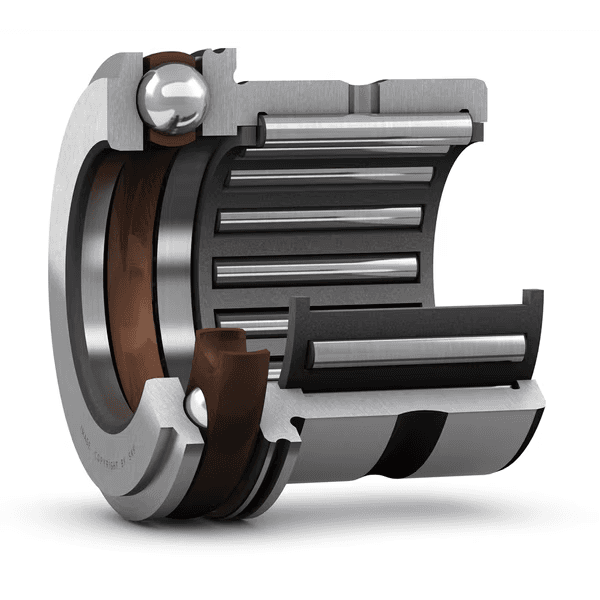

SKF NKX50 Needle Roller Bearing 50 × 62 × 35 mm
Combined needle roller / thrust ball bearing
Needle Roller Bearing
RFQ
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Needle Roller Bearing
- Dimensions
- 50x62x35mm
Overview
Combined needle roller / thrust ball bearing
These bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
Key features
- Accommodate radial and axial loads in one direction
- High load carrying capacity
- Relatively high-speed capability
- Low cross section
- Separable design
Typical applications
- Automotive transmissions
- Industrial gearboxes
- Compressors and pumps
- Links, pivots, and rocker arms
Selection guidance
Check mounting envelope, inner ring requirement, shaft surface hardness, lubrication, load, and speed range.
| Symbol | Value | Description |
|---|---|---|
| d | 50 mm | Bore diameter |
| D | 62 mm | Outside diameter |
| B | 35 mm | Width |
| Symbol | Value | Description |
|---|---|---|
| da | min. 65.5 mm | da |
| ra | max. 0.6 mm | ra |
| rb | max. 0.6 mm | rb |
| di | 45 mm | di |
| F | 50 mm | F |
| Bi | 25 mm | Bi |
- Accommodates radial and axial loads in one direction
- High load capacity
- Relatively high-speed capability
- Low cross-section
- Separable design
| Code | Description |
|---|---|
| 구름 베어링 유형 | Needle roller/thrust ball bearing |
| 베어링 부품 | Radial component without inner ring |
| 스러스트 부품 | With cage |
| 경방향 부품 | With cage |
| 구름 요소(스러스트 부품) | Ball |
| 축방향 하중 역량 | Single row |
| 공차 클래스 | Other |
| 소재, 베어링 | Bearing steel |
| 코팅 | None |
| 윤활제(스러스트 부품) | None |
| 제품 순 중량 | 0.28 kg |
| eClass 코드 | 23-05-09-03 |
| UNSPSC 코드 | 31171512 |
