  1. Home
  2. /Bearings
  3. /SKF PER.205HPPB54
SKF SKF PER.205HPPB54
  • SKF SKF PER.205HPPB54

SKF

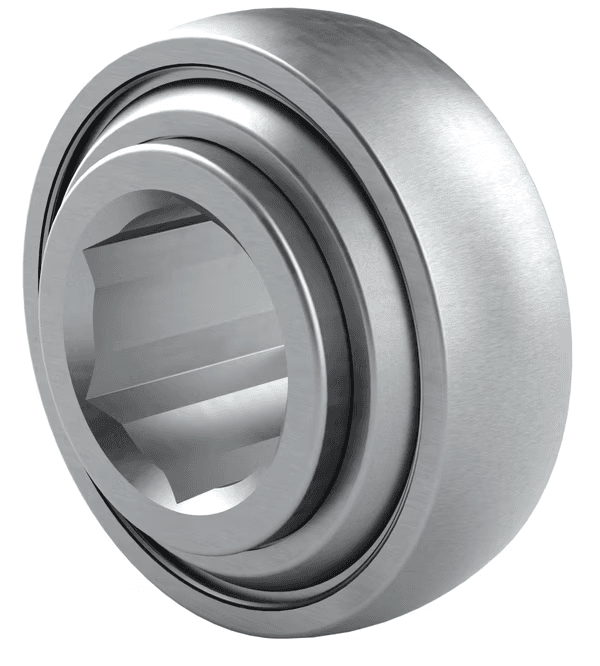

SKF PER.205HPPB54 Angular Contact Ball Bearing 22.25 × 52 × 22.936 mm

Special ball bearing with hexagonal bore, spherical outer surface and high contamination resistant seals

Angular Contact Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

CX04NZ1TMV
Category
Angular Contact Ball Bearing
Dimensions
22.25x52x22.936mm

Overview

Special ball bearing with hexagonal bore, spherical outer surface and high contamination resistant seals

These special single row deep groove ball bearings are designed mainly for agricultural applications, such as combine harvesters, balers. The hexagonal bore enables ease of mounting on mating hexagonal shafts. The spherical outside surface accommodates static misalignment when mounted in standard/commercial housings. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.

Key features

  • ·Designed mainly for agricultural applications
  • ·Hexagonal bore
  • ·Easy to mount and accommodate initial misalignment
  • ·Versatile, robust design
  • ·Integral sealing and higher than standard grease fill prolongs bearing service life

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

SymbolValueDescription
C14 kNBasic dynamic load rating
C07.88 kNBasic static load rating
SymbolValueDescription
d22.25 mmBore diameter
D52 mmOutside diameter
B22.936 mmWidth
  • Mainly designed for agricultural use
  • 육각형 보어
  • Easy to mount and accommodates initial misalignment
  • Versatile and rugged design
  • Integrated sealing and higher-than-standard grease fill extend bearing service life
CodeDescription
보어 유형Hexagonal
제품 순 중량0.171 kg

Also searched as

The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:

  • PER205HPPB54
  • PER 205HPPB54
  • SKFPER205HPPB54
  • SKF PER 205HPPB54
  • SKFPER 205HPPB54
  • SKF PER205HPPB54
  • PER
