| Symbol | Value | Description |
|---|---|---|
| C | 25.5 kN | Basic dynamic load rating |
| C0 | 15.3 kN | Basic static load rating |
| limiting_speed_rpm | 5 300 r/min | Limiting speed |
| note | 샤프트 공차 h6로 한계 속도 | Note |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

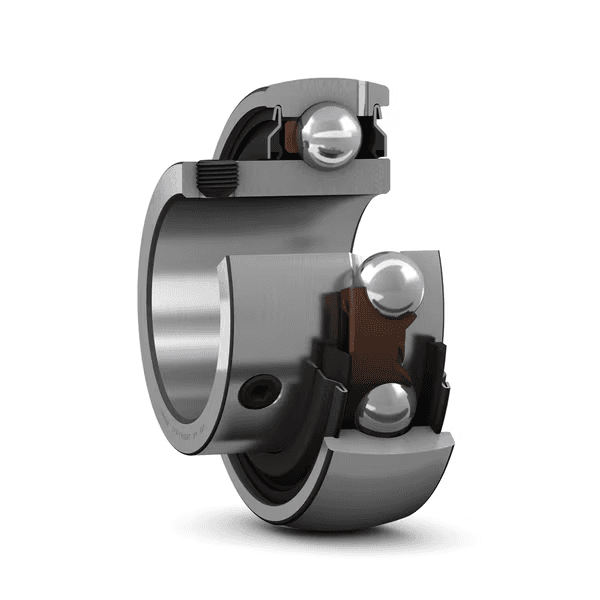

SKF YAT207 Radial Insert Ball Bearing 35 × 72 × 33 mm
Insert bearing with set screws locking and narrow inner ring
Radial Insert Ball Bearing
RFQ
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Radial Insert Ball Bearing
- Dimensions
- 35x72x33mm
Overview
Insert bearing with set screws locking and narrow inner ring
Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.
Key features
- Quick and easy to mount onto the shaft
- Long service life
- Reduce noise and vibration levels
Typical applications
- Conveyor rollers
- Agricultural and food machinery
- Fans and blowers
- Packaging and handling equipment
Selection guidance
Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.
| Symbol | Value | Description |
|---|---|---|
| d | 35 mm | Shaft diameter |
| d | 35 mm | Bore diameter |
| D | 72 mm | Outside diameter |
| T | 33 mm | Total width |
| B | 33 mm | Inner ring width |
| C | 19 mm | Outer ring width |
- Quick and easy mounting on the shaft
- Accommodates static initial misalignment
- Long service life
- Reduced noise and vibration levels
| Code | Description |
|---|---|
| 고정 기능, 내륜 | Set screw |
| 보어 유형 | Cylindrical |
| 구름 요소 | Ball |
| 외륜 유형 | 구형 |
| 내륜 연장 | On one side |
| 케이지 | Non-metallic |
| 고무 시팅 링 | None |
| 소재, 베어링 | Bearing steel |
| 코팅 | None |
| 씰링 | Seal on both sides |
| 씰링 유형 | Contact, standard |
| 윤활유 | Grease |
| 재윤활 기능 | Included |
| 제품 순 중량 | 0.373 kg |
| eClass 코드 | 23-05-08-02 |
| UNSPSC 코드 | 31171536 |
