| Symbol | Value | Description |
|---|---|---|
| C | 52.7 kN | Basic dynamic load rating |
| C0 | 36 kN | Basic static load rating |
| limiting_speed_rpm | 3 400 r/min | Limiting speed |
| note | 샤프트 공차 h6로 한계 속도 | Note |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF
SKF YEL Radial Insert Ball Bearing 60 × 110 × 77.8 mm
Radial insert ball bearing (Y-bearing)
Radial Insert Ball Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Radial Insert Ball Bearing
- Dimensions
- 60x110x77.8mm
Overview
Radial insert ball bearing (Y-bearing)

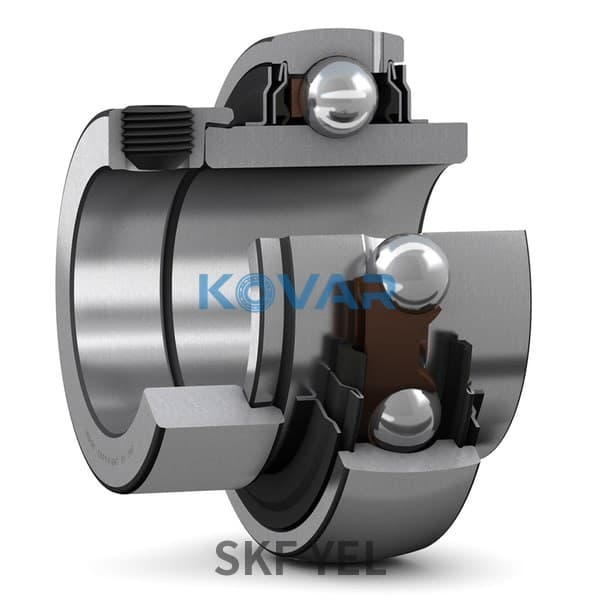

Radial insert ball bearings (Y-bearings) have a spherical outside surface and an extended inner ring, easily locked to the shaft by set screws or an eccentric collar. Combined with a housing they form flanged or pillow block units and accommodate a degree of initial misalignment.
Key features
- Simple locking by set screw/eccentric collar
- Spherical OD accommodates initial misalignment
- Form housing units
- Sealed for reduced maintenance
Typical applications
- Conveyor rollers
- Agricultural and food machinery
- Fans and blowers
- Packaging and handling equipment
Selection guidance
Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.
| Symbol | Value | Description |
|---|---|---|
| d | 60 mm | Shaft diameter |
| d | 60 mm | Bore diameter |
| D | 110 mm | Outside diameter |
| T | 77.8 mm | Total width |
| B | 61.9 mm | Inner ring width |
| C | 26 mm | Outer ring width |
| Code | Description |
|---|---|
| 고정 기능, 내륜 | Eccentric locking collar |
| 보어 유형 | Cylindrical |
| 구름 요소 | Ball |
| 외륜 유형 | 구형 |
| 내륜 연장 | Both sides |
| 케이지 | Non-metallic |
| 고무 시팅 링 | None |
| 소재, 베어링 | Bearing steel |
| 코팅 | None |
| 씰링 | Seal and flinger on both sides |
| 씰링 유형 | Contact, standard |
| 윤활유 | Grease |
| 재윤활 기능 | Included |
| 제품 순 중량 | 1.65 kg |
| eClass 코드 | 23-05-08-02 |
| UNSPSC 코드 | 31171536 |
