Self-aligning Ball Bearings
搜索： 1313KTVHC3, 1313 K TVH C3, 1313K TVH C3, 1313KTVH C3, 1313 KTVHC3, 1313 K TVHC3
CN¥436.03起
不含税
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
| 规格 | Default | 价格 | 数量 |
|---|---|---|---|
| fag:1313-K-TVH-C3 | Default | CN¥436.03 |
| 符号 | 数值 | 说明 |
|---|---|---|

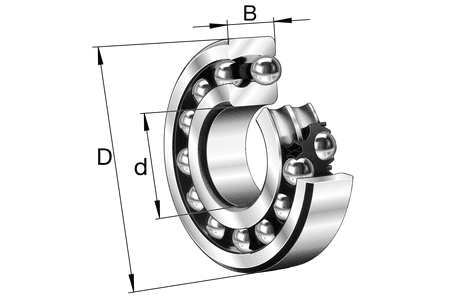

| d | 65 mm | Bore diameter |
| D | 140 mm | Outside diameter |
| B | 33 mm | Width |
| Cr | 63.000 N | Basic dynamic load rating, radial |
| C0r | 22.900 N | Basic static load rating, radial |
| Cur | 1.420 N | Fatigue load limit, radial |
| nG | 5.200 1/min | Limiting speed |
| nϑr | 5.100 1/min | Reference speed |
| ≈m | 2,41 kg | Weight |
| 符号 | 数值 | 说明 |
|---|---|---|
| rmin | 2,1 mm | Minimum chamfer dimension |
| D1 | 118,2 mm | Shoulder diameter outer ring |
| d1 | 92,68 mm | Shoulder diameter inner ring |
| 项目 | 代码 | 说明 |
|---|---|---|
| Bore type | K | Tapered, taper 1:12 |
| Sealing | Without | Not sealed |
| Cage | TVH | Solid cage made of glass-fiber reinforced polyamide PA66 |
| Tolerance class | PN | Tolerance class PN, acc. to DIN 620 |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Lubricant | Without | Bearing not greased |
| 符号 | 数值 | 说明 |
|---|---|---|
| da min | 77 mm | Minimum diameter shaft shoulder |
| da max | 89 mm | Maximum diameter shaft shoulder |
| Da max | 128 mm | Maximum diameter of housing shoulder |
| db min | 70 mm | Minimum cavity diameter of the sleeve |
| Ba min | 6 mm | Minimum cavity width of the sleeve |
| ra max | 2,1 mm | Maximum fillet radius |
| 符号 | 数值 | 说明 |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
| 符号 | 数值 | 说明 |
|---|---|---|
| e | 0,23 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2,74 | Dynamic axial load factor |
| Y2 | 4,25 | Dynamic axial load factor |
| Y0 | 2,88 | Static axial load factor |
| 代码 | 说明 |
|---|---|
| H313 | Adapter sleeve |
