Angular Contact Ball Bearings
有库存CN¥181.62起

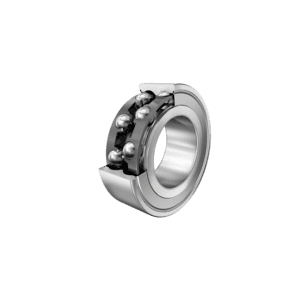

FAG 3210-BD-XL-2Z-TVH-C3 — 3210-BD-XL-2Z-TVH-C3 FAG 3210-BD-XL-2Z-TVH-C3 Angular Contact Ball Bearings Bore diameter (d): 50 mm Outside diameter (D): 90 mm Width (B): 30,2 mm Dynamic load rating (Cr): 53.000 N Static load rating (C0r): 44.000 N Fatigue load limit (Cur): 3.050 N Limiting speed (nG): 5.900 1/min…
搜索： 3210BDXL2ZTVHC3, 3210 BD XL 2Z TVH C3, 3210BD XL 2Z TVH C3, 3210BDXL 2Z TVH C3, 3210BDXL2Z TVH C3, 3210BDXL2ZTVH C3
CN¥181.62起
不含税
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
预计配送日期：2026.05.02（韩国库存）
| 规格 | Default | 价格 | 数量 |
|---|---|---|---|
| fag:3210-BD-XL-2Z-TVH-C3 | Default | CN¥181.62 |
| 符号 | 数值 | 说明 |
|---|---|---|
| d | 50 mm | Bore diameter |
| D | 90 mm | Outside diameter |
| B | 30,2 mm | Width |
| Cr | 53.000 N | Basic dynamic load rating, radial |
| C0r | 44.000 N | Basic static load rating, radial |
| Cur | 3.050 N | Fatigue load limit, radial |
| nG | 5.900 1/min | Limiting speed |
| nϑr | 7.600 1/min | Reference speed |
| ≈m | 0,677 kg | Weight |
| 符号 | 数值 | 说明 |
|---|---|---|
| rmin | 1,1 mm | Minimum chamfer dimension |
| D1 | 80,1 mm | Shoulder diameter outer ring |
| D2 | 82,91 mm | Caliber diameter outer ring |
| d1 | 64,9 mm | Shoulder diameter inner ring |
| d2 | 62,83 mm | Caliber diamter inner ring |
| a | 53,2 mm | Distance between the apexes of the pressure cones |
| α | 30 ° | Contact angle |
| 项目 | 代码 | 说明 |
|---|---|---|
| Design variant | B | Bearing without filling slot |
| Changed internal design | D | D |
| Sealing | 2Z | Non-contact shield on both sides |
| Cage | TVH | Solid cage made of glass-fiber reinforced polyamide PA66 |
| Tolerance class | P6 | Class6 (P6), better than PN |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | GA13 | Ball bearing and insert bearing grease |
| Axial internal clearance | C3 | Group 3 (C3), bigger than CN |
| 符号 | 数值 | 说明 |
|---|---|---|
| da min | 57 mm | Minimum diameter shaft shoulder |
| Da max | 83 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum fillet radius |
| 符号 | 数值 | 说明 |
|---|---|---|
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:
3210BDXL2ZTVHC33210 BD XL 2Z TVH C33210BD XL 2Z TVH C33210BDXL 2Z TVH C33210BDXL2Z TVH C33210BDXL2ZTVH C33210 BDXL2ZTVHC33210 BD XL2ZTVHC33210 BD XL 2ZTVHC33210 BD XL 2Z TVHC332103210BDCN¥181.62起
不含税
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
预计配送日期：2026.05.02（韩国库存）
| 规格 | Default | 价格 | 数量 |
|---|---|---|---|
| fag:3210-BD-XL-2Z-TVH-C3 | Default | CN¥181.62 |
