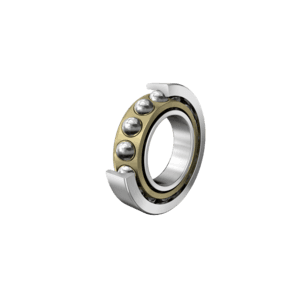

FAG 7218-B-XL-MP-UO 角接触球轴承

Angular Contact Ball Bearings

有库存CN¥700.65起

FAG 7218-B-XL-MP-UO — 7218-B-XL-MP-UO FAG 7218-B-XL-MP-UO Angular Contact Ball Bearings Bore diameter (d): 90 mm Outside diameter (D): 160 mm Width (B): 30 mm Dynamic load rating (Cr): 114.000 N Static load rating (C0r): 98.000 N Fatigue load limit (Cur): 6.100 N Limiting speed (nG): 7.200 1/min Reference speed (nϑr):…

搜索： 7218BXLMPUO, 7218 B XL MP UO, 7218B XL MP UO, 7218BXL MP UO, 7218BXLMP UO, 7218 BXLMPUO

CN¥700.65起

不含税

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

预计配送日期：2026.05.02（韩国库存）

fag:7218-B-XL-MP-UOCN¥700.65

DefaultDefault

品牌：FAG 有库存

Category: 角接触球轴承

符号	数值	说明
d	90 mm	Bore diameter
D	160 mm	Outside diameter
B	30 mm	Width
C_r	114.000 N	Basic dynamic load rating, radial
C_0r	98.000 N	Basic static load rating, radial
C_ur	6.100 N	Fatigue load limit, radial
n_G	7.200 1/min	Limiting speed
n_ϑr	4.550 1/min	Reference speed
≈m	2,47 kg	Weight

符号	数值	说明
r_min	2 mm	Minimum chamfer dimension
r_{1 min}	1 mm	Minimum chamfer dimension
D₁	133,4 mm	Shoulder diameter on outer ring wide side face
d₁	117,5 mm	Shoulder diameter on inner ring wide side face
a	67,4 mm	Distance between the apexes of the pressure cones
α	40 °	Contact angle

项目	代码	说明
Design variant	B	B
Sealing	Without	Not sealed
Cage	MP	Solid brass cage, ball guided
Tolerance class	PN	Normal (PN)
Dimensional / heat stabilization	S0	Rings dimensional stabilized up to 150°
Bearing with matched conditions for fitting in pairs	UO	Bearing set clearance-free in O or X arrangement
Lubricant	Without	Bearing not greased

符号	数值	说明
d_{a min}	101 mm	Minimum diameter of shaft shoulder
D_{a max}	149 mm	Maximum diameter of housing shoulder
D_{b max}	154,4 mm	Maximum diameter of housing shoulder
r_{a max}	2 mm	Maximum fillet radius of shaft
r_{a1 max}	1 mm	Maximum fillet radius of housing

符号	数值	说明
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.

Radial load
Axial load in one direction
Grease Lubrication
Oil Lubrication
Not sealed

代码	说明
0 µm	Axial clearance per set min.
12 µm	Tolerance for axial clearance or preload per set
