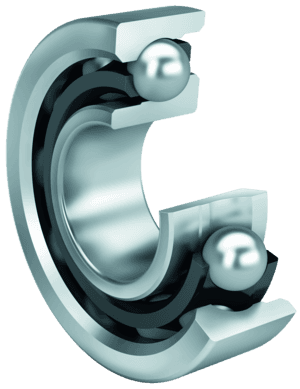

Angular Contact Ball Bearings
搜索： 7305BXLTVP, 7305 B XL TVP, 7305B XL TVP, 7305BXL TVP, 7305 BXLTVP, 7305 B XLTVP
CN¥91.89起
不含税
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
| 规格 | Default | 价格 | 数量 |
|---|---|---|---|
| fag:7305-B-XL-TVP | Default | CN¥91.89 |
| 符号 | 数值 | 说明 |
|---|---|---|
| d | 25 mm | Bore diameter |
| D | 62 mm | Outside diameter |
| B | 17 mm | Width |
| Cr | 30.000 N | Basic dynamic load rating, radial |
| C0r | 15.800 N | Basic static load rating, radial |
| Cur | 1.100 N | Fatigue load limit, radial |
| nG | 15.800 1/min | Limiting speed |
| nϑr | 9.800 1/min | Reference speed |
| ≈m | 0,22 kg | Weight |
| 符号 | 数值 | 说明 |
|---|---|---|
| rmin | 1,1 mm | Minimum chamfer dimension |
| r1 min | 0,6 mm | Minimum chamfer dimension |
| D1 | 48 mm | Shoulder diameter on outer ring wide side face |
| d1 | 39,9 mm | Shoulder diameter on inner ring wide side face |
| a | 26,8 mm | Distance between the apexes of the pressure cones |
| α | 40 ° | Contact angle |
| 项目 | 代码 | 说明 |
|---|---|---|
| Design variant | B | B |
| Sealing | Without | Not sealed |
| Cage | TVP | Solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | P6 | Class6 (P6), better than PN |
| Dimensional / heat stabilization | S0 | Rings dimensional stabilized up to 150° |
| Lubricant | Without | Bearing not greased |
| 符号 | 数值 | 说明 |
|---|---|---|
| da min | 32 mm | Minimum diameter of shaft shoulder |
| Da max | 55 mm | Maximum diameter of housing shoulder |
| Db max | 57,8 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum fillet radius of shaft |
| ra1 max | 0,6 mm | Maximum fillet radius of housing |
| 符号 | 数值 | 说明 |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
