High speed spindle bearing
有库存CN¥3,179.56起
FAG HCS71914-E-T-P4S-UL — HCS71914-E-T-P4S-UL FAG HCS71914-E-T-P4S-UL Spindle Bearings Bore diameter (d): 70 mm Outside diameter (D): 100 mm Width (B): 16 mm Dynamic load rating (Cr): 16.800 N Static load rating (C0r): 11.700 N Fatigue load limit (Cur): 940 N Weight (≈m): 0,332 kg Min. operating temp (Tmin): -30 °C…
搜索： HCS71914ETP4SUL, HCS71914 E T P4S UL, HCS71914E T P4S UL, HCS71914ET P4S UL, HCS71914ETP4S UL, HCS71914 ETP4SUL
CN¥3,179.56起
不含税
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
预计配送日期：2026.05.02（韩国库存）
| 规格 | Default | 价格 | 数量 |
|---|---|---|---|
| fag:HCS71914-E-T-P4S-UL | Default | CN¥3,179.56 |
| 符号 | 数值 | 说明 |
|---|---|---|

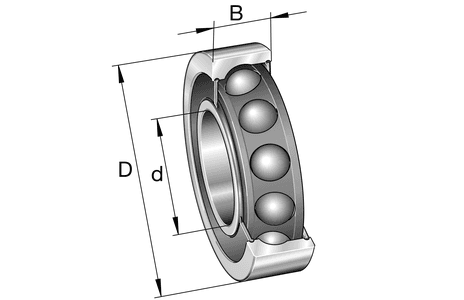

| d | 70 mm | Bore diameter |
| D | 100 mm | Outside diameter |
| B | 16 mm | Width |
| Cr | 16.800 N | Basic dynamic load rating, radial |
| C0r | 11.700 N | Basic static load rating, radial |
| Cur | 940 N | Fatigue load limit, radial |
| nG Grease | 22.000 1/min | Limiting speed for grease lubrication |
| ≈m | 0,332 kg | Weight |
| 符号 | 数值 | 说明 |
|---|---|---|
| rmin | 1 mm | Minimum chamfer dimension |
| r1 min | 1 mm | Minimum chamfer dimension |
| α | 25 ° | Contact angle |
| 项目 | 代码 | 说明 |
|---|---|---|
| Contact angle | E | Contact angle 25° |
| Sealing | 2RSD | Non-contact sealed on both sides and greased “for life” |
| Cage | T | Laminated fabric cage |
| Tolerance class | P4S | Tolerance class P4S, FAG standard better than P4 to DIN 620 |
| Arrangement bearing set | U | Single bearing |
| Preload | L | Preload light |
| 符号 | 数值 | 说明 |
|---|---|---|
| da | 76 mm | Diameter shaft shoulder |
| da | h12 | Diameter shaft shoulder clearance |
| Da | 94,5 mm | Shoulder diameter outer ring |
| Da | H12 | Shoulder diameter outer ring clearance |
| ra max | 0,6 mm | Maximum recess radius |
| ra1 max | 0,3 mm | Maximum recess radius |
| a | 27,8 mm | Distance between the apexes of the pressure cones |
| 符号 | 数值 | 说明 |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
| 代码 | 说明 |
|---|---|
| 69 N | Preload force light |
| 207 N | Preload force medium |
| 414 N | Preload force heavy |
| 198 N | Lift-off force light |
| 602 N | Lift-off force medium |
| 1.221 N | Lift-off force heavy |
| 117 N/µm | Axial rigidity light |
| 173 N/µm | Axial rigidity medium |
| 223 N/µm | Axial rigidity heavy |
