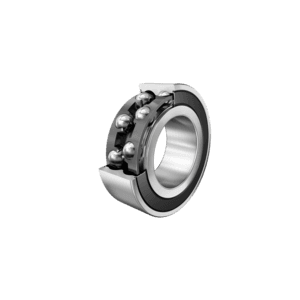

Angular Contact Ball Bearings
搜索： 38002Z, 3800 2Z, 3800
CN¥106.80起
不含税
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
| 规格 | Default | 价格 | 数量 |
|---|---|---|---|
| ina:3800-2Z | Default | CN¥106.80 |
| 符号 | 数值 | 说明 |
|---|---|---|
| d | 10 mm | Bore diameter |
| D | 19 mm | Outside diameter |
| B | 7 mm | Width |
| Cr | 2.080 N | Basic dynamic load rating, radial |
| C0r | 1.370 N | Basic static load rating, radial |
| Cur | 72 N | Fatigue load limit, radial |
| nG | 30.500 1/min | Limiting speed |
| nϑr | 21.000 1/min | Reference speed |
| ≈m | 0,008 kg | Weight |
| 符号 | 数值 | 说明 |
|---|---|---|
| rmin | 0,3 mm | Minimum chamfer dimension |
| D1 | 15,85 mm | Shoulder diameter outer ring |
| D2 | 16,85 mm | Caliber diameter outer ring |
| d1 | 13,3 mm | Shoulder diameter inner ring |
| d2 | 12,23 mm | Caliber diamter inner ring |
| a | 9 mm | Distance between the apexes of the pressure cones |
| α | 25 ° | Contact angle |
| 项目 | 代码 | 说明 |
|---|---|---|
| Design variant | B | Bearing without filling slot |
| Sealing | 2RZ | Non-contact seal on both sides |
| Cage | TVH | Solid cage made of glass-fiber reinforced polyamide PA66 |
| Tolerance class | PN | Normal (PN) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | GA14 | Ball bearing grease, low noise |
| Axial internal clearance | CN | Group N (CN) |
| 符号 | 数值 | 说明 |
|---|---|---|
| da min | 12 mm | Minimum diameter shaft shoulder |
| Da max | 17 mm | Maximum diameter of housing shoulder |
| ra max | 0,3 mm | Maximum fillet radius |
| 符号 | 数值 | 说明 |
|---|---|---|
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
