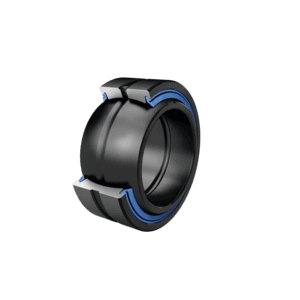

INA GE100-DO-2RS-E 关节轴承
搜索： GE100DO2RSE, GE100 DO 2RS E, GE100DO 2RS E, GE100DO2RS E, GE100 DO2RSE, GE100 DO 2RSE
CN¥947.57起
不含税
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
ina:GE100-DO-2RS-ECN¥947.57
DefaultDefault
| 规格 | Default | 价格 | 数量 |
|---|---|---|---|
| ina:GE100-DO-2RS-E | Default | CN¥947.57 |
品牌：INA 有库存（1件可售）
- Category
- 关节轴承
- Bore
- 100 mm
- Outer Ø
- 150 mm
INA 关节轴承 — 专为严苛工业应用精密设计的高品质轴承。
Key features
- High static load capacity
- Accommodates large angular misalignment
- No lubrication required for PTFE-lined variants
- Excellent shock-load tolerance
Typical applications
- Hydraulic cylinder rod ends
- Construction and agricultural linkages
- Forestry and mining equipment
- Heavy-duty oscillating joints
Selection guidance
Confirm liner type (bronze, PTFE, DU) against lubrication regime and expected oscillation frequency.
| Clearance Group | CN |
| radial clearance min mm | 0.085 |
| radial clearance max mm | 0.165 |
| Sealing Type | 2RS |
| Inner Diameter (d) | 100 mm |
| Outer Diameter (D) | 150 mm |
| Dynamic Load Rating (Cr) | 608.000 N |
| Static Load Rating (C0r) | 3.040.000 N |
| Weight (≈m) | 4,3 kg |
| Min. Temperature (Tmin) | -30 °C |
| Max. Temperature (Tmax) | 130 °C |
| datasheet pdf | 数据手册PDF下载 |
Also searched as
The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:
GE100DO2RSEGE100 DO 2RS EGE100DO 2RS EGE100DO2RS EGE100 DO2RSEGE100 DO 2RSEGE100GE100DOGE100DO2RSINAGE100DO2RSEINA GE100 DO 2RS EINAGE100 DO 2RS E
Frequently asked questions
如何确认轴承规格？
轴承规格以内径×外径×宽度(mm)标注。例如6206表示内径30mm、外径62mm、宽度16mm。可在Kovar按规格搜索。SKF和NSK轴承有什么区别？
SKF（瑞典）和NSK（日本）都是世界级轴承制造商。最佳选择取决于您的应用场景和环境。在Kovar上比较兼容规格。如何申请轴承报价？
在Kovar网站搜索轴承规格，点击询价按钮。输入数量和交期要求即可快速获取报价。What are the dimensions of GE100-DO-2RS-E?
Full dimensional data is available in the manufacturer datasheet — contact us for a copy if it is not attached to this listing.What is the load rating of GE100-DO-2RS-E?
Dynamic load rating (C) is 608.000 N and static load rating (C0) is 3.040.000 N. Service life is a function of actual load, speed, lubrication, and operating temperature — request a bearing life calculation if you need sizing support.Is GE100-DO-2RS-E in stock?
Stock is shown above in real time. Orders placed before the daily cut-off are typically picked and packed same day from the Seoul warehouse.How do I request a quote for GE100-DO-2RS-E?
Use the Request a Quote button on this page. We respond with pricing, lead time, and Incoterms (EX-WORKS by default, DAP or CIF on request) within one business day.Are there equivalent bearings from other manufacturers for GE100-DO-2RS-E?
Most catalogue bearings have direct equivalents across SKF, FAG, INA, NSK, NTN, and Timken. Send us your target part number and we will cross-reference it to the best-priced in-stock equivalent before you commit to an order.
