| 符号 | 数值 | 说明 |
|---|---|---|
| D | 30 mm | 外径 |
| F | 14 mm | 内圈滚道直径 |
| C | 13,8 mm | 外圈宽度 |
| Cr w | 6.100 N | 基本额定动载荷（径向） |
| C0r w | 6.900 N | 基本额定静载荷（径向） |
| Cur w | 1.120 N | 疲劳极限载荷（径向） |
| nD G | 5.500 1/min | 永久脂润滑转速 |
| ≈m | 61 g | 重量 |
+82 70-7954-6116
info@kovar.kr
技术支持时间：周一至周五 9:00–18:00（韩国时间）
INA

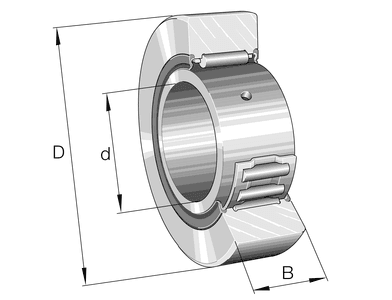

INA NA2200-2RSR 支承滚轮 10 × 30 × 14 mm
Yoke Type Track Roller
CN¥99.99起
不含税ina:NA2200-2RSRCN¥99.99
| 规格 | 价格 | 数量 |
|---|---|---|
| ina:NA2200-2RSR | CN¥99.99 |
有库存预计配送日期：2026.06.15（韩国库存）
显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。
- Category
- 支承滚轮
- Dimensions
- 10x30x14mm
Overview
INA NA2200-2RSR Yoke Type Track Roller is an outer-ring rotating roller bearing that follows cam rails or guide tracks. With a thick outer ring and needle or roller elements, it handles localized and shock loads in automation systems, linear guides, and conveyor tracks.
The thick outer ring directly contacts the track, while needle or cylindrical rollers support the internal load. It is mounted in a yoke or fork arrangement for repetitive linear or cam-following motion.
Key features
- Thick outer ring for track contact
- High radial and shock load capability
- Suitable for cam and rail-following motion
- Sealed or shielded protection options
Typical applications
- Automated transfer systems
- Cam mechanisms
- Conveyor tracks
- Packaging, printing, and textile machines
Selection guidance
Check track shape, outer ring profile, load direction, lubrication/sealing, and yoke or pin dimensions.
| 符号 | 数值 | 说明 |
|---|---|---|
| d | 10 mm | 内径 |
| B | 14 mm | Width of the bearing |
| D1 min | 20 mm | Minimum mounting dimension |
| rmin | 0,6 mm | 最小倒角尺寸 |
| r1 min | 0,3 mm | 最小倒角尺寸 |
| R | 500 mm | 外圈外侧轮廓半径 |
| 项目 | 代码 | 说明 |
|---|---|---|
| 密封 | 2RSR | Lip seal on both sides |
| 外圈轮廓 | R500 | R500 |
| 再润滑功能 | IR | Via inner ring lubrication hole |
- 径向载荷
- 终身润滑，免维护
- 脂润滑
- 两侧密封
