INA

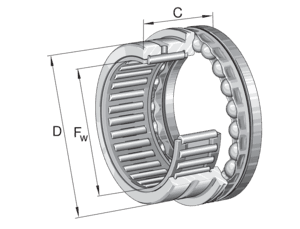

INA NKX17-Z-XL 滚针/推力球轴承

Needle Bearings

Needle Roller / Axial Ball Bearing

CN¥122.44起

不含税

ina:NKX17-Z-XLCN¥122.44

有库存预计配送日期：2026.05.11（韩国库存）

显示价格为 EX-WORKS（国际贸易术语 2020）韩国首尔。运费、关税及保险由买方承担。

Category: 滚针/推力球轴承

Overview

INA NKX17-Z-XL Needle Roller / Axial Ball Bearing combines a radial needle roller bearing with an axial ball bearing function. It is suitable for gearboxes, clutches, and compact drives that must support radial load and one-direction axial load within limited radial space.

A radial needle roller section and an axial ball-and-cage assembly are integrated into one unit. Cover or washer configurations can be selected according to lubrication retention and mounting requirements.

Key features

Supports radial and axial loads in one unit
Compact radial design
Saves space around gears and clutches
Reduces the number of assembly components

Typical applications

Gearbox shafts
Clutches and transmissions
Small electric drives
Rotating sections of automation equipment

Selection guidance

Check radial-to-axial load ratio, axial load direction, washer configuration, lubrication, and mounting space.

符号	数值	说明
F_w	17 mm	Bore diameter
D	26 mm	Outside diameter
C	25 mm	Height
C_r	13.500 N	Basic dynamic load rating, radial
C_0r	15.000 N	Basic static load rating, radial
C_a	10.800 N	Basic dynamic load rating, axial
C_0a	18.200 N	Basic static load rating, axial
C_ur	2.800 N	Fatigue load limit, radial
C_ua	900 N	Fatigue load limit, axial
n_G	8.500 1/min	Limiting speed
≈m	54,66 g	Weight

符号	数值	说明
D_{1 max}	31,2 mm	Maximum outerside diameter flange
D_{2 max}	31,2 mm	Maximum outerside diameter flange
C₁	9 mm	Width of the axial brearing component
C₁	8 mm	Distance to lubrication hole
C₂	8 mm	Distance to lubrication hole
d_w	17 mm	Bore diameter of shaft washer
r_min	0,3 mm	Minimum chamfer dimension

项目	代码	说明
Sealing	Z	Bearing with end cap
Cage	Standard

符号	数值	说明
d_a	25,7 mm	Mounting dimension shaft shoulder
r_{a max}	0,3 mm	Maximum recess radius

符号	数值	说明
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Radial load
Axial load in one direction
Grease Lubrication
Sealed on one side

代码	说明
IR14X17X17-XL	Suitable inner rings IR

数据手册PDF下载
