FAG 234417-M-SP Axial-Schrägkugellager 85 × 130 × 54 mm

Angular Contact Ball Bearings

Axial Angular Contact Ball Bearing

Ab €402.08

zzgl. MwSt.

fag:234417-M-SP€402.08

Auf LagerVoraussichtliche Lieferung: 27. Mai 2026 (Lagerbestand Korea)

Angegebene Preise gelten EX-WORKS (Incoterms 2020) Seoul, Korea. Fracht, Zölle und Versicherung trägt der Käufer.

Category: Axial-Schrägkugellager
Dimensions: 85x130x54mm

Overview

FAG 234417-M-SP Axial Angular Contact Ball Bearing is a precision bearing for screw drives and spindle support positions requiring accurate axial location and high rigidity. It provides low friction and repeatable positioning in ball screws, lead screws, and machine tool feed axes.

The design uses balls with a large contact angle, precision raceways, and controlled preload. Flanged or cylindrical outer-ring styles such as ZKLF and ZKLN can be selected according to the mounting interface.

Key features

High axial rigidity and positioning accuracy
Low friction for precision feed motion
Preload reduces backlash
Optimized for ball screw support

Typical applications

Ball screw support bearings
Machine tool feed axes
Precision linear actuators
Semiconductor and automation equipment

Selection guidance

Select by screw shaft diameter, preload, precision class, flange requirement, speed, and target positioning accuracy.

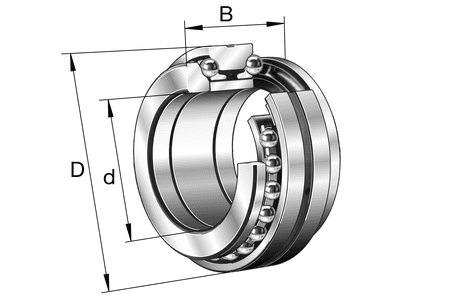

Symbol	Wert	Beschreibung
d	85 mm	Bore diameter
D	130 mm	Outside diameter
B	54 mm	Width
C	27 mm	Width, outer ring
C_a	57.000 N	Basic dynamic load rating, axial
C_0a	179.000 N	Basic static load rating, axial
C_ua	15.900 N	Fatigue load limit, axial
n_{G Grease}	4.500 1/min	Limiting speed for grease lubrication
n_{G Oil}	6.000 1/min	Limiting speed for oil lubrication
≈m	2,239 kg	Weight

Symbol	Wert	Beschreibung
d₁	115 mm	Rip diameter shaft washer
B₁	13,5 mm	Height wave disc
r_min	1,1 mm	Minimum chamfer dimension
r_{1 min}	0,3 mm	Minimum chamfer dimension
d_s	4,8 mm	Diameter lubrication hole
n_s	9,5 mm	Width of lubricating groove

Element	Code	Beschreibung
Cage	M	Brass Cage
Tolerance class	SP	Tolerance class SP

Symbol	Wert	Beschreibung
d_a	103,5 mm	Diameter shaft shoulder
d_a	h12	Diameter shaft shoulder clearance
D_a	122 mm	Shoulder diameter outer ring
D_a	H12	Shoulder diameter outer ring clearance
r_{a max}	1,1 mm	Maximum recess radius
r_{a1 max}	0,3 mm	Maximum recess radius
α	60 °	Contact angle
a	216,5 mm	Distance between the apexes of the pressure cones

Symbol	Wert	Beschreibung
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.

Radial load
Axial load in one direction
Axial load in two directions
Grease Lubrication
Oil Lubrication
Not sealed

Code	Beschreibung
655 N/µm	Axial rigidity
1.140 N	Lift-off force
400 N	Preload force

Datenblatt-PDF herunterladen
