| 記号 | 値 | 説明 |
|---|---|---|
| ≈m | 1.425 kg | 質量 |
| Cr | 123.000 N | 基本動定格荷重（ラジアル） |
| C0r | 122.000 N | 基本静定格荷重（ラジアル） |
| Cur | 8.800 N | 疲労限界荷重（ラジアル） |
| nG | 10.200 1/min | 許容回転数 |
| nϑr | 4.550 1/min | 基準回転数 |
+82 70-7954-6116
info@kovar.kr
技術サポート対応時間：月〜金 9:00〜18:00（韓国時間）
FAG

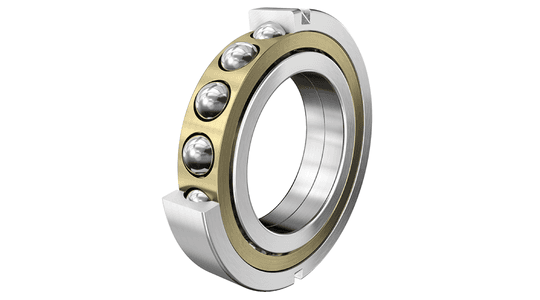

FAG QJ215-XL-N2-MPA-F59-C4 Four-Point Contact Ball Bearings 四点接触玉軸受 75 × 130 × 25 mm
Four-Point Contact Ball Bearing
JP¥38,159～
税別fag:QJ215-XL-N2-MPA-F59-C4JP¥38,159
| 仕様 | 価格 | 数量 |
|---|---|---|
| fag:QJ215-XL-N2-MPA-F59-C4 | JP¥38,159 |
在庫あり配送予定日：2026.06.15（国内在庫）
表示価格はEX-WORKS（インコタームズ2020）韓国・ソウル渡しです。輸送費・関税・保険は買主負担となります。
- Category
- 四点接触玉軸受
- Bore
- 75 mm mm
- Outer Ø
- 130 mm mm
- Width
- 25 mm mm
Overview
FAG QJ215-XL-N2-MPA-F59-C4 Four-Point Contact Ball Bearing is a compact angular contact design that can support axial load in both directions and a portion of radial load in a single bearing. It suits gearboxes, cranes, and rotary tables where axial space saving and shaft location are required.
A split inner ring or specially shaped raceway allows the balls to contact at four points. It can replace certain paired angular contact arrangements while reducing axial width.
Key features
- Supports bidirectional axial load
- Saves axial installation space
- Separable design improves mountability
- Suitable for locating bearing positions
Typical applications
- Industrial gearboxes
- Cranes and hoists
- Rotary tables
- Pump and compressor shaft supports
Selection guidance
Confirm axial load dominance, radial load ratio, speed, internal clearance, and the companion bearing arrangement.
| 記号 | 値 | 説明 |
|---|---|---|
| d | 75 mm | 内径 |
| D | 130 mm | 外径 |
| B | 25 mm | 幅 |
| r1, 2 min | 1,5 mm | 最小面取り寸法 |
| D1 | 111,5 mm | Shoulder diameter, outer ring |
| d1 | 93,86 mm | Shoulder diameter, inner ring |
| 記号 | 値 | 説明 |
|---|---|---|
| da min | 84 mm | Min. shoulder diameter for mounting, inner ring |
| Da max | 121 mm | Max. shoulder diameter for mounting, housing |
| ra max | 1,5 mm | Max. fillet radius |
| 記号 | 値 | 説明 |
|---|---|---|
| Tmin | -30 °C | 最低使用温度 |
| Tmax | 150 °C | 最高使用温度 |
| コード | 説明 |
|---|---|
| MPA | Cage |
| PN | Tolerance class |
