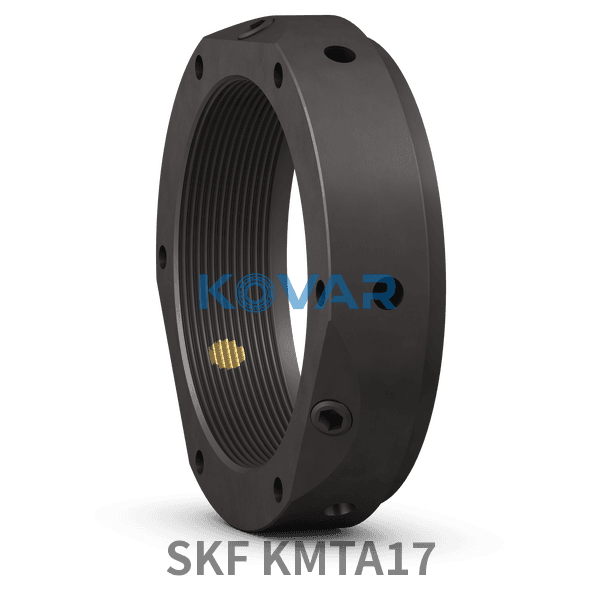

SKF KMTA17 로크 링 85 × 115 × 32 mm

제품 개요

잠금 핀이 있는 정밀 잠금 나사

KMTA precision lock nuts have a cylindrical outside surface and are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm.

선정 가이드

베어링 품번과 장착 위치(내측·외측)로 식별하고, 제조사 조립도의 치수·경도 등급과 일치해야 합니다.
