Spherical Roller Bearings
搜尋： 21309E1XLKC3, 21309 E1 XL K C3, 21309E1 XL K C3, 21309E1XL K C3, 21309E1XLK C3, 21309 E1XLKC3
NT$1,474.03起
未稅
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
| 規格 | Default | 價格 | 數量 |
|---|---|---|---|
| fag:21309-E1-XL-K-C3 | Default | NT$1,474.03 |
| 符號 | 數值 | 說明 |
|---|---|---|

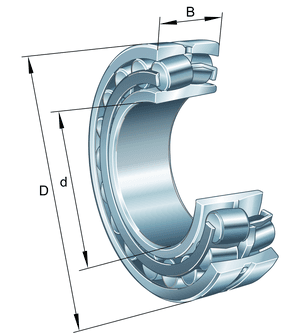

| d | 45 mm | Bore diameter |
| D | 100 mm | Outside diameter |
| B | 25 mm | Width |
| Cr | 129.000 N | Basic dynamic load rating, radial |
| C0r | 130.000 N | Basic static load rating, radial |
| Cur | 17.700 N | Fatigue load limit, radial |
| nG | 9.000 1/min | Limiting speed |
| nϑr | 4.750 1/min | Reference speed |
| ≈m | 0,96 kg | Weight |
| 符號 | 數值 | 說明 |
|---|---|---|
| rmin | 1,5 mm | Minimum chamfer dimension |
| D1 | 89,8 mm | Bore diameter outer ring |
| d2 | 67,6 mm | Raceway diameter of the inner ring |
| ds | 3,2 mm | Diameter lubrication hole |
| ns | 4,8 mm | Width of lubricating groove |
| 項目 | 代碼 | 說明 |
|---|---|---|
| Design | E1 | Without central rip |
| Bore type | K | Tapered, taper 1:12 |
| Cage | JPA | Sheet metal cage |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Relubrication facility | Standard |
| 符號 | 數值 | 說明 |
|---|---|---|
| da min | 54 mm | Minimum diameter shaft shoulder |
| da max | 67 mm | Maximum diameter of shaft shoulder |
| Da max | 91 mm | Maximum diameter of housing shoulder |
| ra max | 1,5 mm | Maximum recess radius |
| db min | 50 mm | Minimum cavity diameter of the sleeve |
| Ba min | 5 mm | Minimum cavity width of the sleeve |
| 符號 | 數值 | 說明 |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
| 符號 | 數值 | 說明 |
|---|---|---|
| e | 0,21 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 3,17 | Dynamic axial load factor |
| Y2 | 4,72 | Dynamic axial load factor |
| Y0 | 3,1 | Static axial load factor |
| 代碼 | 說明 |
|---|---|
| H309 | Adapter sleeve |
| AH309 | Withdrawal sleeve |
