Self-aligning Ball Bearings
搜尋： 22102RSTVH, 2210 2RS TVH, 22102RS TVH, 2210 2RSTVH, 2210, 22102RS
NT$808.04起
未稅
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
| 規格 | Default | 價格 | 數量 |
|---|---|---|---|
| fag:2210-2RS-TVH | Default | NT$808.04 |
| 符號 | 數值 | 說明 |
|---|---|---|

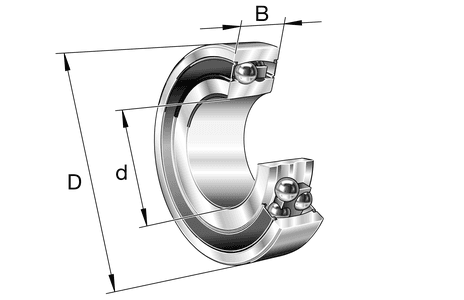

| d | 50 mm | Bore diameter |
| D | 90 mm | Outside diameter |
| B | 23 mm | Width |
| Cr | 22.900 N | Basic dynamic load rating, radial |
| C0r | 8.100 N | Basic static load rating, radial |
| Cur | 520 N | Fatigue load limit, radial |
| nG | 4.400 1/min | Limiting speed |
| ≈m | 0,59 kg | Weight |
| 符號 | 數值 | 說明 |
|---|---|---|
| rmin | 1,1 mm | Minimum chamfer dimension |
| D1 | 77,38 mm | Shoulder diameter outer ring |
| D2 | 78,95 mm | Caliber diameter outer ring |
| d1 | 62,7 mm | Shoulder diameter inner ring |
| d2 | 60,48 mm | Caliber diameter inner ring |
| 項目 | 代碼 | 說明 |
|---|---|---|
| Bore type | Z | Cylindrical |
| Sealing | 2RS | Contact seal on both sides |
| Cage | TVH | Solid cage made of glass-fiber reinforced polyamide PA66 |
| Tolerance class | PN | Tolerance class PN, acc. to DIN 620 |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Lubricant | GA13 | Ball bearing and insert bearing grease |
| 符號 | 數值 | 說明 |
|---|---|---|
| da min | 57 mm | Minimum diameter shaft shoulder |
| Da max | 83 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum fillet radius |
| 符號 | 數值 | 說明 |
|---|---|---|
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
| 符號 | 數值 | 說明 |
|---|---|---|
| e | 0,2 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 3,15 | Dynamic axial load factor |
| Y2 | 4,87 | Dynamic axial load factor |
| Y0 | 3,3 | Static axial load factor |
