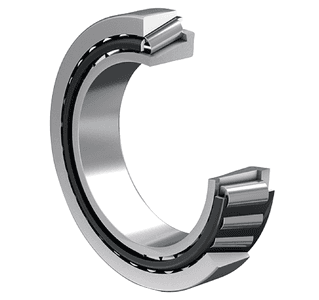

FAG 32307-A 圓錐滾子軸承

Tapered Roller Bearings

有庫存NT$438.74起

FAG 32307-A — 32307-A FAG 32307-A Tapered Roller Bearings Bore diameter (d): 35 mm Outside diameter (D): 80 mm Width (B): 32,75 mm Dynamic load rating (Cr): 100.000 N Static load rating (C0r): 113.000 N Fatigue load limit (Cur): 13.800 N Limiting speed (nG): 9.400 1/min Reference speed (nϑr): 6.500 1/min Weight (≈m):…

搜尋： 32307A, 32307 A, 32307

NT$438.74起

未稅

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

預計配送日期：2026.05.02（韓國庫存）

fag:32307-ANT$438.74

DefaultDefault

品牌：FAG 有庫存

Category: 圓錐滾子軸承

符號	數值	說明
d	35 mm	Bore diameter
D	80 mm	Outside diameter
B	31 mm	Width, inner ring
C	25 mm	Width, outer ring
T	32,75 mm	Width, total
C_r	100.000 N	Basic dynamic load rating, radial
C_0r	113.000 N	Basic static load rating, radial
C_ur	13.800 N	Fatigue load limit, radial
n_G	9.400 1/min	Limiting speed
n_ϑr	6.500 1/min	Thermal speed rating
≈m	0,747 kg	Weight

符號	數值	說明
r_{1, 2 min}	2 mm	Minimum chamfer dimension of inner ring back face
r_{3, 4 min}	1,5 mm	Minimum chamfer dimension of outer ring back face
a	20 mm	Distance between the apexes of the pressure cones
d₁	56,1 mm	Guidance rib diameter of inner ring

項目	代碼	說明
Tolerance class	PN	Normal (ISO 492:2014)
Heat treatment	Standard
Cage	Standard	Sheet steel cage, window cage, roller- guided
Internal design	Standard
Quality level	Standard
Number of rolling element rows	1	Single-row design

符號	數值	說明
d_{a max}	44 mm	Maximum diameter of shaft shoulder
d_{b min}	44 mm	Minimum diameter of shaft shoulder
D_{a min}	66 mm	Minimum diameter of housing shoulder
D_{a max}	71 mm	Maximum diameter of housing shoulder
D_{b min}	74 mm	Minimum diameter of housing shoulder
C_{a min}	4 mm	Minimum axial space
C_{b min}	7,5 mm	Minimum axial space
r_{a max}	2 mm	Maximum fillet radius of shaft
r_{b max}	1,5 mm	Maximum fillet radius of housing

符號	數值	說明
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

符號	數值	說明
e	0,32	Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
Y	1,9	Dynamic axial load factor
Y₀	1,05	Static axial load factor

Radial load
Axial load in one direction
Grease Lubrication
Oil Lubrication
Not sealed

代碼	說明
T2FE035	Comparative designation to ISO 10317 and ISO 355

資料手冊PDF下載
