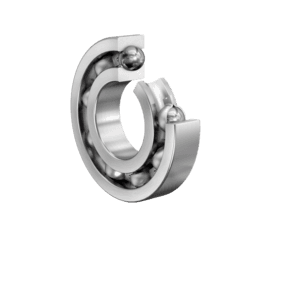

Deep Groove Ball Bearings
搜尋： 6324OP, 6324 OP, 6324
NT$9,181.92起
未稅
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
| 規格 | Default | 價格 | 數量 |
|---|---|---|---|
| fag:6324-OP | Default | NT$9,181.92 |
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 120 mm | Bore diameter |
| D | 260 mm | Outside diameter |
| B | 55 mm | Width |
| Cr | 225.000 N | Basic dynamic load rating, radial |
| C0r | 195.000 N | Basic static load rating, radial |
| Cur | 9.800 N | Fatigue load limit, radial |
| nG | 3.500 1/min | Limiting speed |
| nϑr | 3.800 1/min | Reference speed |
| ≈m | 12,8 kg | Weight |
| 符號 | 數值 | 說明 |
|---|---|---|
| rmin | 3 mm | Minimum chamfer dimension |
| D1 | 215,6 mm | Shoulder diameter outer ring |
| d1 | 165,8 mm | Shoulder diameter inner ring |
| 項目 | 代碼 | 說明 |
|---|---|---|
| Sealing | Without | Not sealed |
| Cage | JN | Steel sheet metal |
| Tolerance class | PN | Normal (PN) |
| Dimensional / heat stabilization | S1 | Rings dimensional stabilized up to 200° |
| Lubricant | Without | Bearing not greased |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Bore type | Z | Cylindrical |
| 符號 | 數值 | 說明 |
|---|---|---|
| da min | 134 mm | Minimum diameter shaft shoulder |
| Da max | 246 mm | Maximum diameter of housing shoulder |
| ra max | 2,5 mm | Maximum fillet radius |
| 符號 | 數值 | 說明 |
|---|---|---|
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
| 符號 | 數值 | 說明 |
|---|---|---|
| f0 | 13,8 | Calculation factor |
