FAG

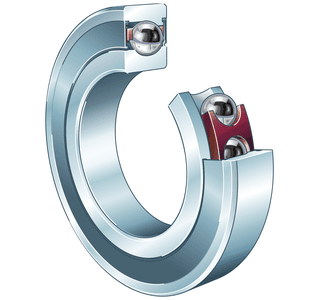

FAG B7007-C-2RSD-T-P4S-UL 主軸軸承

Spindle Bearing

NT$5,233.28起

未稅

fag:B7007-C-2RSD-T-P4S-ULNT$5,233.28

有庫存預計配送日期：2026.05.03（韓國庫存）

顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。

Category: 主軸軸承

Overview

FAG B7007-C-2RSD-T-P4S-UL Spindle Bearing is a super-precision angular contact ball bearing for high-speed, high-accuracy spindle positions in machine tools. It supports low heat generation, high rigidity, and controlled preload to improve machining quality and spindle stability.

It consists of precision-ground rings, high-accuracy balls, and a high-speed cage. P4S-class accuracy and matched arrangements are used to set preload, rigidity, and running accuracy, while lubrication method strongly affects performance.

Key features

Super-precision running accuracy
Low heat generation at high speed
High spindle rigidity through preload matching
Suitable for stable machining quality

Typical applications

Machining center spindles
Grinding and milling spindles
High-speed motor spindles
Precision inspection and processing equipment

Selection guidance

Review precision class, contact angle, arrangement, preload, lubrication method, maximum speed, and required spindle rigidity.

符號	數值	說明
d	35 mm	Bore diameter
D	62 mm	Outside diameter
B	14 mm	Width
C_r	19.300 N	Basic dynamic load rating, radial
C_0r	9.600 N	Basic static load rating, radial
C_ur	1.020 N	Fatigue load limit, radial
n_{G Grease}	24.000 1/min	Limiting speed for grease lubrication
≈m	151,6 g	Weight

符號	數值	說明
r_min	1 mm	Minimum chamfer dimension
r_{1 min}	1 mm	Minimum chamfer dimension
α	15 °	Contact angle

項目	代碼	說明
Preload	L	Preload light
Contact angle	C	Contact angle 15°
Tolerance class	P4S	Tolerance class P4S, FAG standard better than P4 to DIN 620
Cage	T	Laminated fabric cage
Arrangement bearing set	U	Single bearing
Lubricant	GA21	Grease for super precision bearings, standard

符號	數值	說明
d_a	41 mm	Diameter shaft shoulder
d_a	h12	Diameter shaft shoulder clearance
D_a	56 mm	Shoulder diameter outer ring
D_a	H12	Shoulder diameter outer ring clearance
r_{a max}	1 mm	Maximum recess radius
r_{a1 max}	0,3 mm	Maximum recess radius
a	13,5 mm	Distance between the apexes of the pressure cones

符號	數值	說明
T_min	-30 °C	Operating temperature min.
T_max	80 °C	Operating temperature max.

Radial load
Axial load in one direction
Lifetime lubrication, freedom from maintenance
Grease Lubrication
Sealed on both sides

代碼	說明
95 N	Preload force light
321 N	Preload force medium
649 N	Preload force heavy
296 N	Lift-off force light
1.087 N	Lift-off force medium
2.357 N	Lift-off force heavy
38 N/µm	Axial rigidity light
67 N/µm	Axial rigidity medium
96 N/µm	Axial rigidity heavy
