| 符號 | 數值 | 說明 |
|---|---|---|
| ≈m | 40 kg | 重量 |
| Cr | 750.000 N | 基本額定動負荷（徑向） |
| C0r | 1.690.000 N | 基本額定靜負荷（徑向） |
| Cur | 190.000 N | 疲勞極限負荷（徑向） |
| nG | 2.430 1/min | 極限轉速 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
FAG

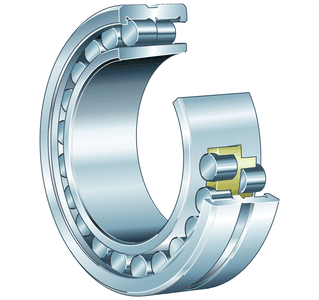

FAG NNU4952-S-K-M-SP Cylindrical Roller Bearings For Main Spindles 圓柱滾子軸承 260 × 360 × 100 mm
Cylindrical Roller Bearings For Main Spindles
Cylindrical Roller Bearing
詢價
預計配送日期：2026.06.15（韓國庫存）
有庫存預計配送日期：2026.06.15（韓國庫存）
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 圓柱滾子軸承
- Bore
- 260 mm mm
- Outer Ø
- 360 mm mm
- Width
- 100 mm mm
Overview
FAG NNU4952-S-K-M-SP Cylindrical Roller Bearing is designed for high radial load capacity through line contact between rollers and raceways. It is suitable for rigid, heavy-duty applications such as motors, gearboxes, rolling mills, and machine tools, with N, NU, NJ, and NUP designs offering different axial locating functions.
Cylindrical rollers and a cage are arranged between inner and outer ring raceways. Depending on flange configuration, the bearing can be separable and may support axial load in one or both directions.
Key features
- High radial load capacity
- Rigid performance for high-speed operation
- Separable design for easier mounting
- Axial locating capability by design variant
Typical applications
- Industrial electric motors
- Gearboxes and reducers
- Machine tool spindle support positions
- Rolling mills, paper machines, and heavy machinery
Selection guidance
Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.
| 符號 | 數值 | 說明 |
|---|---|---|
| d | 260 mm | 內徑 |
| D | 360 mm | 外徑 |
| B | 100 mm | 寬度 |
| r1, 2 min | 2,1 mm | 最小倒角尺寸 |
| 符號 | 數值 | 說明 |
|---|---|---|
| ra max | 2,1 mm | Max. fillet radius |
| 符號 | 數值 | 說明 |
|---|---|---|
| Tmin | -30 °C | 最低工作溫度 |
| Tmax | 150 °C | 最高工作溫度 |
| 代碼 | 說明 |
|---|---|
| M | Cage |
| SP | Tolerance class |
| K | Bore type |
| C1 (Group 1) | Radial clearance group |
