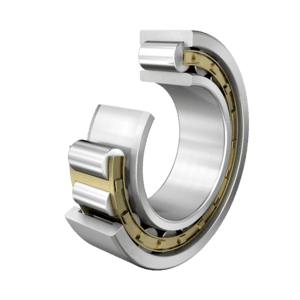

FAG NU1072-M1-C3 圓柱滾子軸承
搜尋： NU1072M1C3, NU1072 M1 C3, NU1072M1 C3, NU1072 M1C3, NU1072, NU1072M1
NT$103,497.85起
未稅
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
fag:NU1072-M1-C3NT$103,497.85
DefaultDefault
| 規格 | Default | 價格 | 數量 |
|---|---|---|---|
| fag:NU1072-M1-C3 | Default | NT$103,497.85 |
品牌：FAG 有庫存（1件可售）
- Category
- 圓柱滾子軸承
- Bore
- 360 mm
- Outer Ø
- 540 mm
- Width
- 82 mm
FAG 圓柱滾子軸承 — 專為嚴苛工業應用精密設計的高品質軸承。
Key features
- High radial load capacity and stiffness
- Low friction for high-speed operation
- Line-contact rollers spread load across the raceway
- Available in separable inner or outer ring arrangements for simpler assembly
Typical applications
- Gearboxes and industrial transmissions
- Electric motors and generators
- Machine tool spindles
- Rolling mills and crushers
Selection guidance
When selecting a cylindrical roller bearing, confirm bore, outer diameter, and width against your housing, and check dynamic load rating against the expected radial load and required service life.
| Clearance Group | C3 |
| Cage Type | M1 |
| Inner Diameter (d) | 360 mm |
| Outer Diameter (D) | 540 mm |
| Width (B) | 82 mm |
| Dynamic Load Rating (Cr) | 1.150.000 N |
| Static Load Rating (C0r) | 1.910.000 N |
| Limiting Speed (nG) | 1.940 1/min |
| Reference Speed (nϑr) | 1.110 1/min |
| Weight (≈m) | 66,71 kg |
| Min. Temperature (Tmin) | -30 °C |
| Max. Temperature (Tmax) | 150 °C |
| Tolerance Class (Tolerance class) | PN |
| datasheet pdf | 資料手冊PDF下載 |
Also searched as
The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:
NU1072M1C3NU1072 M1 C3NU1072M1 C3NU1072 M1C3NU1072NU1072M1FAGNU1072M1C3FAG NU1072 M1 C3FAGNU1072 M1 C3FAGNU1072M1 C3FAG NU1072M1C3FAG NU1072 M1C3
Frequently asked questions
如何確認軸承規格？
軸承規格以內徑×外徑×寬度(mm)標註。例如6206表示內徑30mm、外徑62mm、寬度16mm。可在Kovar依規格搜尋。SKF和NSK軸承有什麼區別？
SKF（瑞典）和NSK（日本）都是世界級軸承製造商。最佳選擇取決於您的應用場景和環境。在Kovar上比較相容規格。如何申請軸承報價？
在Kovar網站搜尋軸承規格，點擊詢價按鈕。輸入數量和交期要求即可快速取得報價。What are the dimensions of NU1072-M1-C3?
The bore is 360 mm, outer diameter 540 mm, and width 82 mm. Full dimensional data is available on request, or in the manufacturer datasheet.What is the load rating of NU1072-M1-C3?
Dynamic load rating (C) is 1.150.000 N and static load rating (C0) is 1.910.000 N. Service life is a function of actual load, speed, lubrication, and operating temperature — request a bearing life calculation if you need sizing support.Is NU1072-M1-C3 in stock?
Stock is shown above in real time. Orders placed before the daily cut-off are typically picked and packed same day from the Seoul warehouse.How do I request a quote for NU1072-M1-C3?
Use the Request a Quote button on this page. We respond with pricing, lead time, and Incoterms (EX-WORKS by default, DAP or CIF on request) within one business day.Are there equivalent bearings from other manufacturers for NU1072-M1-C3?
Most catalogue bearings have direct equivalents across SKF, FAG, INA, NSK, NTN, and Timken. Send us your target part number and we will cross-reference it to the best-priced in-stock equivalent before you commit to an order.
