  1. Home
  2. /Bearings
  3. /SKF 30307 Tapered Roller Bearing
SKF

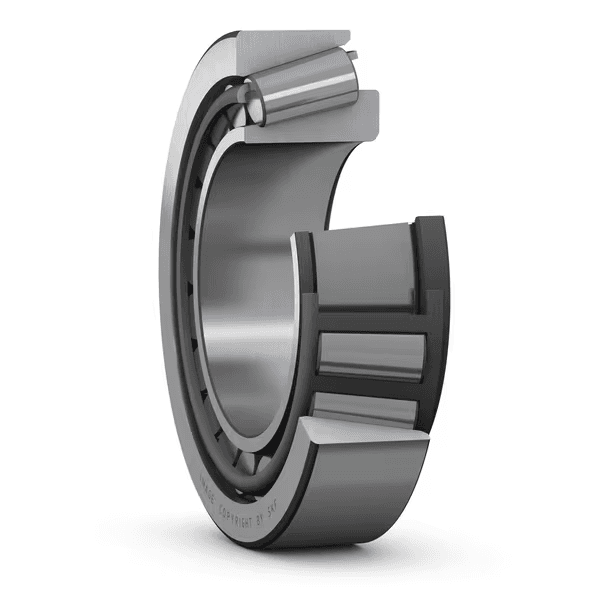

SKF 30307 SKF 30307 Tapered Roller Bearing
  • SKF 30307 SKF 30307 Tapered Roller Bearing

SKF

SKF 30307 Tapered Roller Bearing 35 × 80 × 22.75 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

Estimated delivery: 28 Nov 2026 (domestic stock)

In stockEstimated delivery: 28 Nov 2026 (domestic stock)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TL7Y3AT17M
Category
Tapered Roller Bearing
Bore
35 mm
Outer Ø
80 mm
Width
22.75 mm

Overview

The SKF 30307 is a plain tapered roller bearing with no suffix, 35 × 80 × 22.75 mm (bore × OD × width).

Kovar lists 3 SKF variants in the 35×80×22.75 mm size; the closest to the 30307 are 31307 (tapered roller bearing (metric series)), 31307/DF=2PCS (tapered roller bearing (metric series)). Limiting speed is 9,000 rpm for the 30307 versus 8,500 rpm for the 31307.

The same specification comes one size down as 30306 (30 mm bore) and one size up as 30308 (40 mm bore). Parts from other brands with the same dimensions as the 30307 include KOYO 30307, NSK 30307, NTN 4T-30307D; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
nϑr7500 r/minReference speed
nG9000 r/minLimiting speed
≈m0.51 kgWeight
α11.9 °Contact Angle (α)
C88.9 kNBasic Dynamic Load Rating (C)
C073.5 kNBasic Static Load Rating (C0)
SKF ExplorerPerformance Class

Dimensions

SymbolValueDescription
d35 mmBore diameter
D80 mmOutside diameter
B22.75 mmWidth
B21 mmInner Ring Width (B)
C18 mmCup Width (C)

Product description

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

  • ·High radial and axial load carrying capacity
  • ·Accommodate axial loads in one direction
  • ·Low friction and long service life
  • ·Separable and interchangeable components

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

RFQ

Estimated delivery: 28 Nov 2026 (domestic stock)

Interchangeable alternatives to SKF 30307

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
