  1. Home
  2. /Bearings
  3. /SKF 30308 Tapered Roller Bearing
SKF
SKF 30308 SKF 30308 Tapered Roller Bearing
  • SKF 30308 SKF 30308 Tapered Roller Bearing

SKF

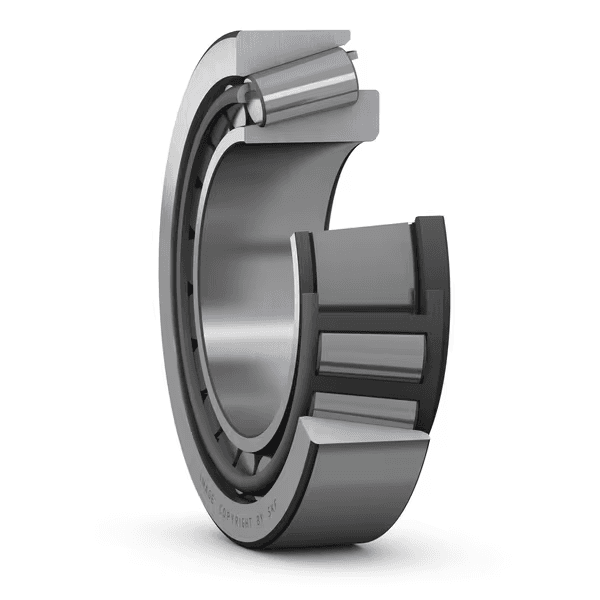

SKF 30308 Tapered Roller Bearing 40 × 90 × 25.25 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLACTSDCQT
Category
Tapered Roller Bearing
Bore
40 mm
Outer Ø
90 mm
Width
25.25 mm

Overview

SKF 30308: a plain tapered roller bearing with no suffix measuring 40 × 90 × 25.25 mm (bore × OD × width).

Kovar lists 5 SKF variants in the 40×90×25.25 mm size; the closest to the 30308 are 31308 (tapered roller bearing (metric series)), 31308/CL7C (tapered roller bearing (metric series)), 31308/CL7C 31308CL7C (tapered roller bearing (metric series)). Limiting speed is 8,000 rpm for the 30308 versus 7,500 rpm for the 31308.

The same specification comes one size down as 30307 (35 mm bore) and one size up as 30309 (45 mm bore). Looking for the 30308 size from another brand? Options include FAG 30308-A, KOYO 30308, NSK 30308, NTN 30308 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
nϑr6300 r/minReference speed
nG8000 r/minLimiting speed
≈m0.73 kgWeight
α13 °Contact Angle (α)
C106 kNBasic Dynamic Load Rating (C)
C095 kNBasic Static Load Rating (C0)
SKF ExplorerPerformance Class

Dimensions

SymbolValueDescription
d40 mmBore diameter
D90 mmOutside diameter
B25.25 mmWidth
B23 mmInner Ring Width (B)
C20 mmCup Width (C)

Product description

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

  • ·High radial and axial load carrying capacity
  • ·Accommodate axial loads in one direction
  • ·Low friction and long service life
  • ·Separable and interchangeable components

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

RFQ

Interchangeable alternatives to SKF 30308

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
