  1. Home
  2. /Bearings
  3. /SKF 30309 Tapered Roller Bearing
SKF

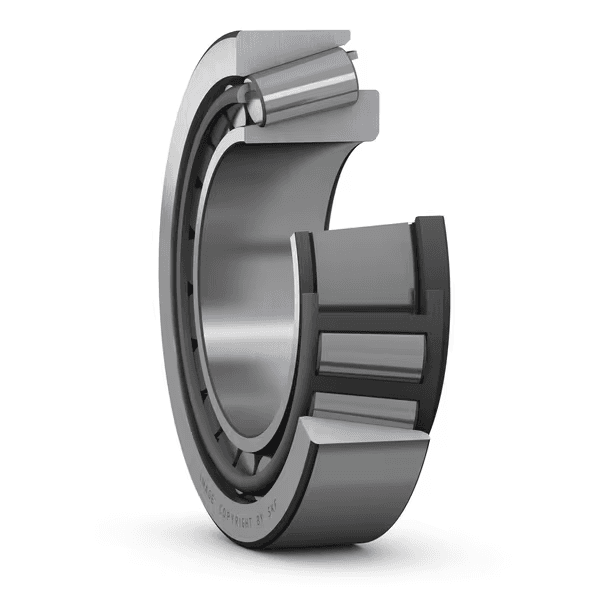

SKF 30309 SKF 30309 Tapered Roller Bearing
  • SKF 30309 SKF 30309 Tapered Roller Bearing

SKF

SKF 30309 Tapered Roller Bearing 45 × 100 × 27.25 mm

Single row tapered roller bearing

Tapered Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

SK2ASJE5J8
Category
Tapered Roller Bearing
Bore
45 mm
Outer Ø
100 mm
Width
27.25 mm

Overview

The SKF 30309 is a plain tapered roller bearing with no suffix, 45 × 100 × 27.25 mm (bore × OD × width).

Kovar lists 4 SKF variants in the 45×100×27.25 mm size; the closest to the 30309 are 31309 (tapered roller bearing (metric series)), 31309/CL7C (tapered roller bearing (metric series)), 31309/CL7C 31309CL7C (tapered roller bearing (metric series)). Limiting speed is 7,000 rpm for the 30309 versus 6,700 rpm for the 31309.

The same specification comes one size down as 30308 (40 mm bore) and one size up as 30310 (50 mm bore). Parts from other brands with the same dimensions as the 30309 include KOYO 30309, NSK 30309, NTN 30309; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
nϑr5600 r/minReference speed
nG7000 r/minLimiting speed
≈m0.975 kgWeight
α13 °Contact Angle (α)
C132 kNBasic Dynamic Load Rating (C)
C0120 kNBasic Static Load Rating (C0)
SKF ExplorerPerformance Class

Dimensions

SymbolValueDescription
d45 mmBore diameter
D100 mmOutside diameter
B27.25 mmWidth
B25 mmInner Ring Width (B)
C22 mmCup Width (C)

Product description

Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Key features

  • ·High radial and axial load carrying capacity
  • ·Accommodate axial loads in one direction
  • ·Low friction and long service life
  • ·Separable and interchangeable components

Typical applications

  • ·Automotive and industrial wheel hubs
  • ·Gearboxes and differentials
  • ·Construction and agricultural axles
  • ·Conveyors and rolling equipment

Selection guidance

Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.

RFQ

Interchangeable alternatives to SKF 30309

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
