  1. Home
  2. /Bearings
  3. /SKF 7310BEGAP Angular Contact Ball Bearing
SKF

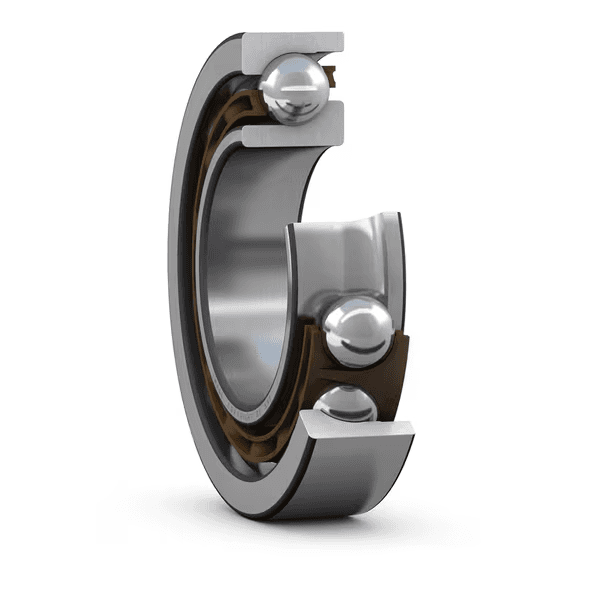

SKF 7310BEGAP SKF 7310BEGAP Angular Contact Ball Bearing
  • SKF 7310BEGAP SKF 7310BEGAP Angular Contact Ball Bearing

SKF

SKF 7310BEGAP Angular Contact Ball Bearing 50 × 110 × 27 mm

Single row angular contact ball bearing

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXXCSWMEGY
Category
Angular Contact Ball Bearing
Bore
50 mm

Overview

The SKF 7310BEGAP is an angular contact ball bearing with 40° contact angle · optimized internal design (BE) and single bearing for universal matching · light preload (class A, GA), 50 × 110 × 27 mm (bore × OD × width).

Kovar lists 14 SKF variants in the 50×110×27 mm size; the closest to the 7310BEGAP are 7310BEGAPH (40° contact angle, optimized internal design, Single bearing for universal matching, light preload), 7310BEGAM (40° contact angle, optimized internal design, Single bearing for universal matching, light preload), 7310BEGBP (40° contact angle, optimized internal design, Single bearing for universal matching, moderate preload, Glass fibre reinforced PA66 cage). Limiting speed is 8,000 rpm for the 7310BEGAP versus 10,000 rpm for the 7310BEGAM.

The same specification comes one size down as 7309BEGAP (45 mm bore) and one size up as 7311BEGAP (55 mm bore). Parts from other brands with the same dimensions as the 7310BEGAP include FAG 7310 -B-MP, IBC 7310.BE, KOYO 7310, NSK 7310; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
C75 kNBasic dynamic load rating
C051 kNBasic static load rating
nϑr8 000 r/minReference speed
nG8 000 r/minLimiting speed
SKF ExplorerSKF performance class
≈m1.04 kgWeight

Dimensions

SymbolValueDescription
d50 mmBore diameter
D110 mmOutside diameter
B27 mmWidth
α40 °Contact angle

Mounting Dimensions

SymbolValueDescription
damin. 61 mmda
Damax. 99 mmDa
Dbmax. 104 mmDb
ramax. 2 mmra
rbmax. 1 mmrb

Related Parts

CodeDescription
Contact typeNormal contact (four-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer ring
CageNon-metallic
Matched arrangementNo
Universally matchable bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance / preload)Light preload
Tolerance class클래스 6 (P6)
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight1.04 kg
eClass code23-05-08-03
UNSPSC code31171531

Characteristics

  • High-speed performance
  • Accommodates relatively high radial loads and large unidirectional axial loads

Product description

Single row angular contact ball bearing

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

Key features

  • ·High-speed capability
  • ·Accommodate relatively high radial loads and large unilateral axial loads

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF 7310BEGAP

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.

  • SKF
    SKF SKF 7310BEGAM Angular Contact Ball Bearing

    SKF

    7310BEGAM

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 7310BEGAPH Angular Contact Ball Bearing

    SKF

    7310BEGAPH

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

Same size as SKF 7310BEGAP, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 7310-B-MP Angular Contact Ball Bearing

    FAG

    7310-B-MP

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • IBC
    IBC IBC 7310.BE Angular Contact Ball Bearing

    IBC

    7310.BE

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7310

    KOYO

    7310

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 7310 Angular Contact Ball Bearing

    NSK

    7310

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7310 Angular Contact Ball Bearing

    NTN

    7310

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 7310 Angular Contact Ball Bearing

    SKF

    7310

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 7310-B-MP-UA Angular Contact Ball Bearing

    FAG

    7310-B-MP-UA

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7310B Angular Contact Ball Bearing

    KOYO

    7310B

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
