  1. Home
  2. /Bearings
  3. /SKF PER.5206RPP3
SKF SKF PER.5206RPP3
  • SKF SKF PER.5206RPP3

SKF

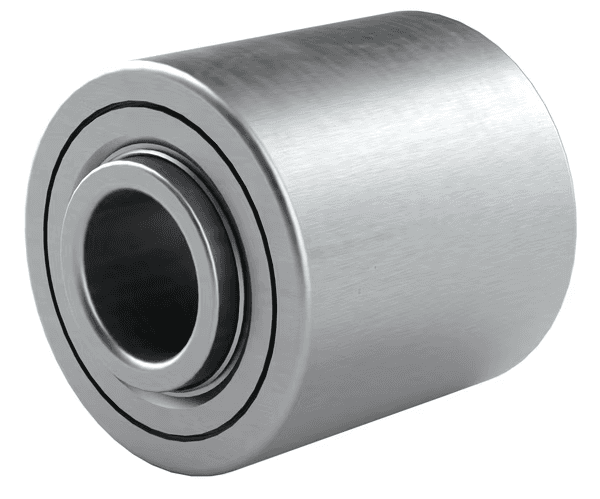

SKF PER.5206RPP3 Angular Contact Ball Bearing 30.15 × 62 × 50 mm

Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals

Angular Contact Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

CXM2NE8J0E
Category
Angular Contact Ball Bearing
Dimensions
30.15x62x50mm

Overview

Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals

These special double row angular contact ball bearings are designed mainly for agricultural applications, are commonly used in agricultural seeding equipment, such as grain drills or planters. The integral sealing and higher-than-standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.

Key features

  • ·Designed mainly for agricultural applications
  • ·Round bore
  • ·Accommodate relatively high radial loads and large axial loads in both directions
  • ·Integral sealing and higher-than-standard grease fill prolongs bearing service life

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

SymbolValueDescription
C29 kNBasic dynamic load rating
C020.7 kNBasic static load rating
SymbolValueDescription
d30.15 mmBore diameter
D62 mmOutside diameter
B50 mmWidth
  • Mainly designed for agricultural use
  • Cylindrical bore
  • Accommodates relatively high radial loads and large axial loads in both directions
  • Integrated sealing and higher-than-standard grease fill extend bearing service life
CodeDescription
열 개수2
씰링 유형Contact type
윤활유Grease
제품 순 중량0.495 kg

Also searched as

The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:

  • PER5206RPP3
  • PER 5206RPP3
  • SKFPER5206RPP3
  • SKF PER 5206RPP3
  • SKFPER 5206RPP3
  • SKF PER5206RPP3
  • PER
