| 符號 | 數值 | 說明 |
|---|---|---|

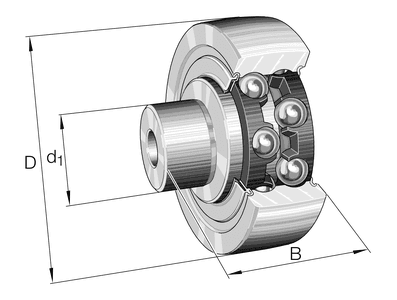

| D | 52 mm | 外徑 |
| d1 | 20 mm | 滾子軸銷配合直徑 |
| B | 45,3 mm | 寬度 |
| Cr w | 16.000 N | 基本額定動負荷（徑向） |
| C0r w | 10.800 N | 基本額定靜負荷（徑向） |
| Cur w | 560 N | 疲勞極限負荷（徑向） |
| nD G | 5.000 1/min | 永久脂潤滑轉速 |
| ≈m | 0,25 kg | 重量 |
+82 70-7954-6116
info@kovar.kr
技術支援時間：週一至週五 9:00–18:00（韓國時間）
INA
INA ZL5204-DRS 曲線滾輪
Stud Type Track Roller
NT$1,726.54起
未稅ina:ZL5204-DRSNT$1,726.54
| 規格 | 價格 | 數量 |
|---|---|---|
| ina:ZL5204-DRS | NT$1,726.54 |
有庫存預計配送日期：2026.06.16（韓國庫存）
顯示價格為 EX-WORKS（國貿條規 2020）韓國首爾。運費、關稅及保險由買方承擔。
- Category
- 曲線滾輪
Overview
INA ZL5204-DRS Stud Type Track Roller is a cam follower with an integrated stud and bearing outer ring. It mounts without a separate shaft, saving space while supporting repeated loads in cams, guide rails, and automated handling equipment.
Needle or cylindrical rollers run inside a thick outer ring, while a threaded stud acts as the shaft. Options such as eccentric studs, seals, and lubrication holes improve adjustment and maintenance.
Key features
- Integrated stud for simple mounting
- Thick outer ring for cam and track contact
- Handles repeated shock loads
- Eccentric versions allow position adjustment
Typical applications
- Cam follower mechanisms
- Automated transfer rails
- Packaging and printing machines
- Lifts, doors, and guide systems
Selection guidance
Check stud diameter and thread, outer ring profile, eccentric adjustment need, load, speed, and lubrication.
| 符號 | 數值 | 說明 |
|---|---|---|
| B1 max | 25,5 mm | 推力墊圈最大寬度 |
| B2 | 20 mm | 螺栓/螺柱有效長度 |
| B4 | 43 mm | 總長度 |
| C | 20,6 mm | 外圈寬度 |
| C1 | 4 mm | 外圈至推力墊圈凸出量 |
| d2 | 26,8 mm | 推力墊圈止動直徑 |
| rmin | 1 mm | 最小倒角尺寸 |
| g | M10 | 內螺紋 |
| lg | 18 mm | 內螺紋長度 |
| R | 500 mm | 外圈外側輪廓半徑 |
| 項目 | 代碼 | 說明 |
|---|---|---|
| 密封 | DRS | Lip seal on stud side, axial sealing action Sealing shield with cover on the end face |
| 外圈輪廓 | R500 | R500 |
| 再潤滑功能 | Without | 無 |
| 裝配輔助頭 | SL | Mounting slot |
- 徑向負荷
- 單向軸向負荷
- 雙向軸向負荷
- 終身潤滑，免維護
- 脂潤滑
- 兩側密封
Also searched as
The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:
ZL5204DRSZL5204 DRSZL5204INAZL5204DRSINA ZL5204 DRSINAZL5204 DRSINA ZL5204DRSINAZL5204
