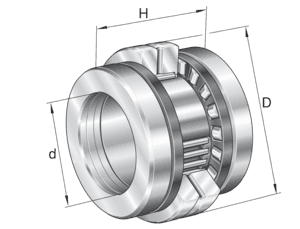

INA ZARN45105-TV-A Needle Roller / Axial Cylindrical Roller Bearing 45 × 105 × 53.5 mm

Cylindrical Roller Bearings

Needle Roller / Axial Cylindrical Roller Bearing

From US$732.05

Excl. VAT

ina:ZARN45105-TV-AUS$732.05

In stockEstimated delivery: 16 Jun 2026 (domestic stock)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Needle Roller / Axial Cylindrical Roller Bearing
Dimensions: 45x105x53.5mm

Overview

INA ZARN45105-TV-A Needle Roller / Axial Cylindrical Roller Bearing combines radial needle rollers with an axial cylindrical roller thrust section for high axial load capacity. It suits gearboxes, screw supports, and machine tools requiring high axial rigidity in restricted space.

The needle roller section supports radial load, while the axial cylindrical roller section supports high thrust load. Precision variants such as ZARF use flange and bolt features for screw-drive positioning.

Key features

Supports radial and high axial loads together
High axial rigidity
Compact combined bearing structure
Applicable to precision screw supports

Typical applications

Industrial gearboxes
Ball screw and lead screw supports
Machine tool feed axes
Compact high-load drives

Selection guidance

Review axial load, rigidity requirement, washer/flange configuration, lubrication, precision, and available mounting space.

Symbol	Value	Description
d	45 mm	Bore diameter
D	105 mm	Outside diameter
H	82 mm	Hight
C_a	154.000 N	Basic dynamic load rating, axial
C_0a	405.000 N	Basic static load rating, axial
C_r	40.000 N	Basic dynamic load rating, radial
C_0r	82.000 N	Basic static load rating, radial
C_ua	37.500 N	Fatigue load limit, axial
C_ur	11.500 N	Fatigue load limit, radial
n_{G Oil}	3.300 1/min	Limiting speed for oil lubrication
n_{G Grease}	1.150 1/min	Limiting speed for grease lubrication
M_RL	3,5 Nm	Bearing friction torque
≈m	3,034 kg	Weight

Symbol	Value	Description
H₁	53,5 mm	Height outer ring over wave washer
C	25 mm	Width, outer ring
D₁	90 mm	Rip diameter shaft washer
B	17,5 mm	Width, inner ring
r_min	0,3 mm	Minimum chamfer dimension
r_{1 min}	0,6 mm	Minimum chamfer dimension

Item	Code	Description
Cage	TV	Plastic Cage made from PA66

Symbol	Value	Description
D_{a max}	91 mm	Maximum diameter of housing shoulder
d_{a min}	70 mm	Minimum diameter shaft shoulder

Symbol	Value	Description
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Radial load
Axial load in one direction
Axial load in two directions
Grease Lubrication
Oil Lubrication
Not sealed

Code	Description
4.000 N/µm	Rigidity axial
2.100 Nm/mrad	Tilting stiffness
23,7 kg*cm2	Mass moment of inertia
1 µm	Axial runout
ZMA45/85	Recommended INA precision locknut for radial locking (not included)
AM45	Recommended INA precision locknut for axial locking (not included)
150 Nm	Tightening torque nut
33.549 N	Preload force axial
